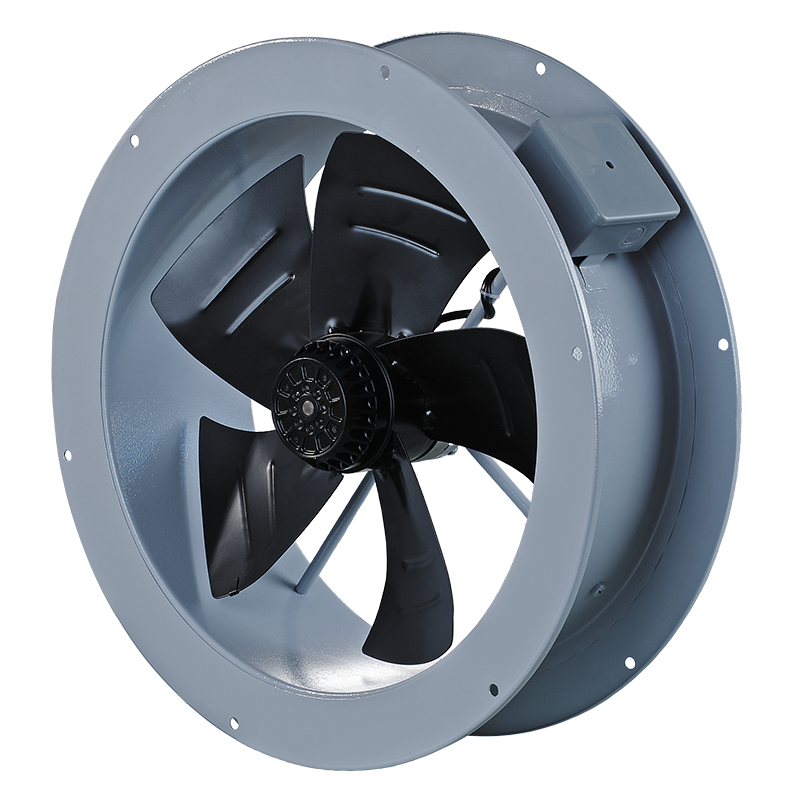

Blauberg Axis-F 250 2D

Axial inline fans

	Unit of measurement	Axis-F 250 2D
Phases	-	3
Minimum supply voltage	V	400
Maximum supply voltage	V	400
Power supply frequency	Hz	50	60
Weight	kg	3.9
Transported air temperature (max)	°С	60
Transported air temperature (min)	°С	-30
Ingress protection rating	-	IP24
Ingress protection rating of the drive	-	IP54
Impeller material	-	Coated steel

Trademark	Blauberg
Model	Axis-F 250 2D
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-53.7	A+	-26.6	B	-11.1	E
Type of ventilation unit	Unidirectional
Type of drive installed	Variable speed
Type of heat recovery system	None
Maximum flow rate (m³/h)	500
Electric power input (W)	80
Reference flow rate (m³/s)	0.097
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.126
Control typology	Local demand control
Maximum external leakage rates (%)	2.7
Declared typology	RVU UVU
Sound power level (dB(A))	60
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	67		67		67
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	5536		2830		1280
