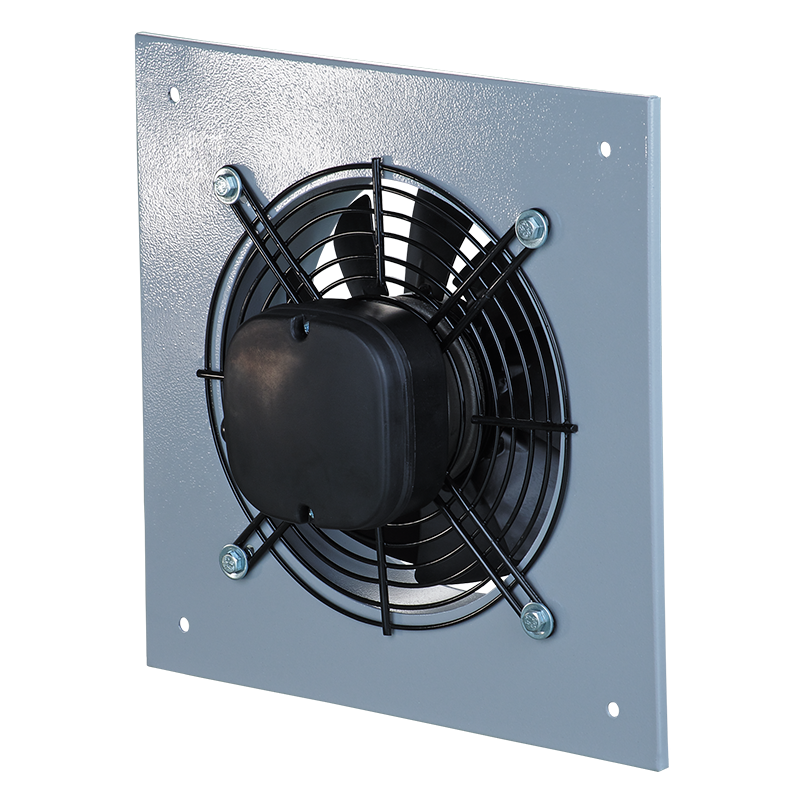

/ Product catalogue / Commercial and industrial ventilation / Axial fans / Wall / Axis-Q / Axis-Q 200 2E| Unit of measurement | Axis-Q 200 2E | ||
| Phases | - | 1 | |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | 60 |
| Weight | kg | 3 | |
| Transported air temperature (max) | °С | 60 | |
| Transported air temperature (min) | °С | -30 | |
| Ingress protection rating | - | IP24 | |
| Ingress protection rating of the drive | - | IP54 | |
| Impeller material | - | Coated steel | |
| Trademark | Blauberg |
| Model | Axis-Q 200 2E |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 65 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 8.3 |
| Sound power level (dB(A)) | 70 |
| Effective electric power input (kW) | 0.06 |
| Declared typology | NRVU UVU |

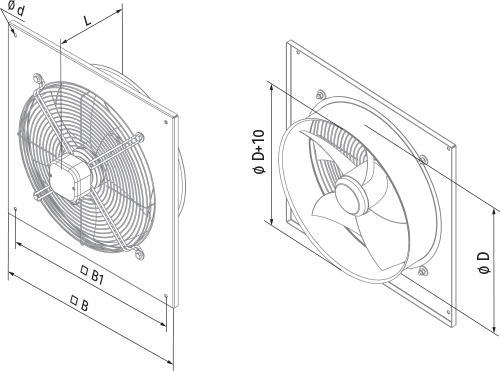

| ØD | Ød | B | B1 | L |
|---|---|---|---|---|
| 210 | 7 | 312 | 260 | 125 |
