/ Product catalogue / Commercial and industrial ventilation / Supply ventilation units / Suspended units / BLAUBOX E Pro / BLAUBOX E 800-5.1 Pro
| Unit of measurement | BLAUBOX E 800-5.1 Pro | |
| Phases | - | 3 |
| Minimum supply voltage | V | 400 |
| Maximum supply voltage | V | 400 |
| Power supply frequency | Hz | 50 |
| Power of electrical reheater | W | 5100 |
| Maximum airflow | m³/h | 810 |
| Weight | kg | 52 |
| Transported air temperature (max) | °С | 55 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |
| Ambient air humidity max | % | 80 |

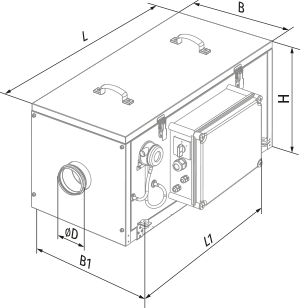

| ∅D | B | B1 | H | L | L1 |
|---|---|---|---|---|---|
| 199 | 487 | 526.5 | 513 | 835 | 684 |
| Name | Photo | Description |
|---|---|---|
| Blauberg SD 200/600 |
|
Silencers for round ducts |
| Blauberg SD 200/900 |
|
Silencers for round ducts |
| Blauberg SD 200/1200 |
|
Silencers for round ducts |
| Blauberg SDF 200/600 |
|
Flexible silencers for round ducts |
| Blauberg SDF 200/900 |
|
Flexible silencers for round ducts |
| Blauberg SDF 200/2000 |
|
Flexible silencers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg VRV 200 |
|
Backdraft dampers with spring for round ducts |
| Blauberg VKA 200 |
|
Air dampers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg EVA 200 |
|
Flexible anti-vibration connectors for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 439x428x70 G4 |
|
G4 panel filter |
