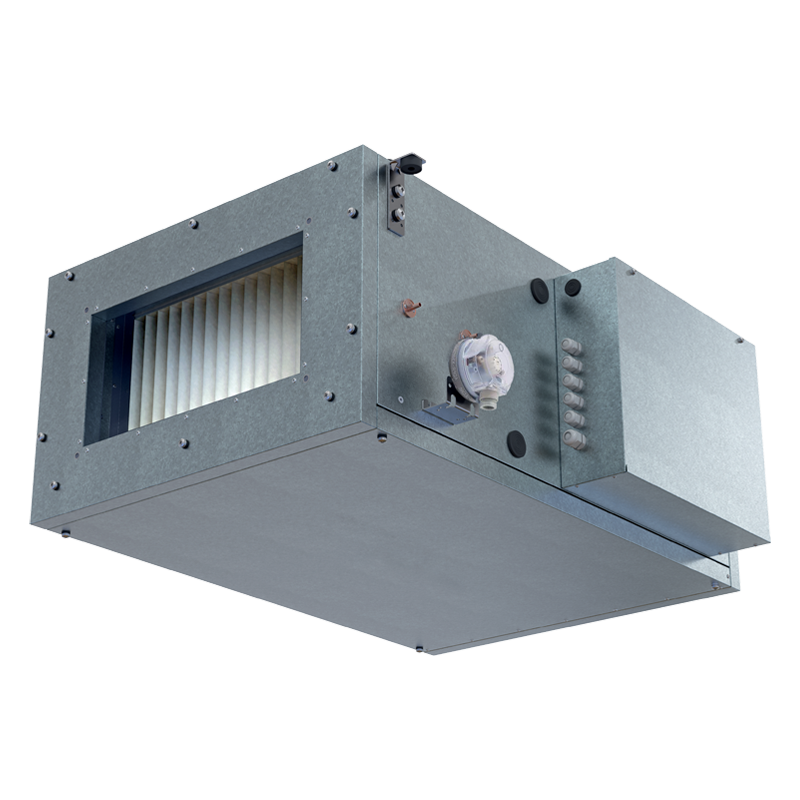

/ Product catalogue / Commercial and industrial ventilation / Supply ventilation units / Units with water heaters / Blaubox EC MW / Blaubox EC MW 1500 S31
| Unit of measurement | Blaubox EC MW 1500 S31 | |
| Phases | - | 1 |
| Maximum supply voltage | V | 230 |
| Minimum supply voltage | V | 230 |
| Power supply frequency | Hz | 50 |
| Maximum airflow | m³/h | 1445 |
| Weight | kg | 49 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -30 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |
| Trademark | Blauberg |
| Model | Blaubox EC MW 1500 S31 |
| Type of drive installed | Integrated VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 200 |
| Maximum external leakage rates (%) | 4 |
| Static efficiency (%) | 42.8 |
| Effective electric power input (kW) | 0.165 |
| Face velocity at design flow rate (m/s) | 1.267 |
| Sound power level (dB(A)) | 62 |
| Declared typology | NRVU UVU |
| Energy performance of filters | B |
| H | H1 | H2 | L | L1 | L2 | W | W1 | W2 | W3 |
|---|---|---|---|---|---|---|---|---|---|
| 440 | 250 | 318 | 900 | 770 | 65 | 700 | 754 | 847 | 500 |
| Name | Photo | Description |
|---|---|---|
| Blauberg SD 50x25 |
|
Silencers for rectangular ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg EVA 50x25 |
|
Flexible anti-vibration connectors for rectangular ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg SL 50x25 |
|
Air dampers for rectangular ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 636x376x48 ePM1 70% / F7 |
|
F7 panel filter |
| Blauberg FP 636x376x48 Coarse 90% / G4 |
|
G4 panel filter |
| Name | Photo | Description |
|---|---|---|
| Blauberg Belimo TF24 |
|
Electric actuators |
| Blauberg Belimo TF230 |
|
Electric actuators |
