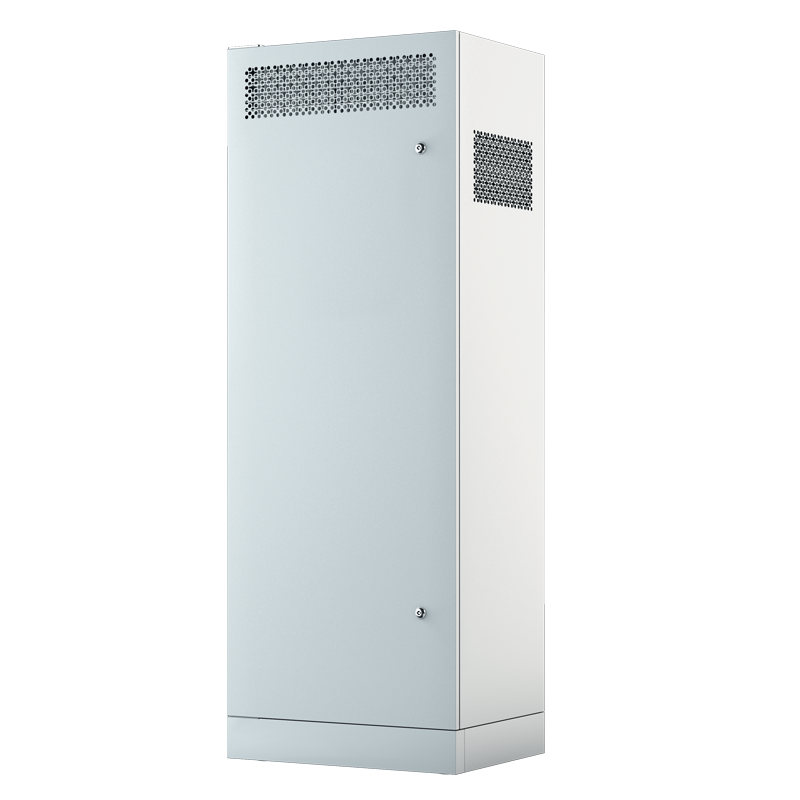

/ Product catalogue / Decentralized ventilation units / Decentralized HRU for schools and public buildings / Vertical / CIVIC EC LB / Civic EC LB 300 S21
| Unit of measurement | Civic EC LB 300 S21 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Sound pressure level LpA at 1 m | dB(A) | 31 |
| Heat recovery efficiency, max | % | 92 |
| Heat exchanger type | - | Counter flow |
| Heat exchanger material | - | Polystyrene |
| Weight | kg | 138 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ambient air humidity max | % | 60 |
| Ingress protection rating | - | IP20 |
| Ingress protection rating of the drive | - | IP44 |

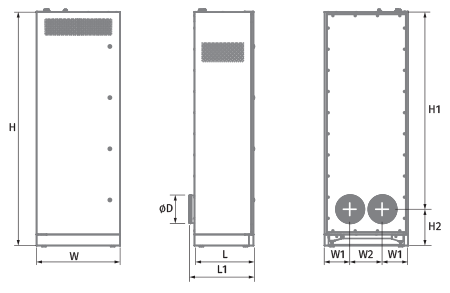

| ∅ D | H | H1 | H2 | L | L1 | W | W1 | W2 |
|---|---|---|---|---|---|---|---|---|
| 200 | 1770 | 1476 | 294 | 470 | 520 | 620 | 230 | 195 |
| Name | Photo | Description |
|---|---|---|
| Blauberg SFK 20x32 |
|
Hydraulic syphon for condensate drainage |
| Blauberg CP-2 |
|
Drain pump |
| Name | Photo | Description |
|---|---|---|
| Blauberg S25 |
|
LCD control panel |
| Blauberg S22 |
|
Control panels |
| Blauberg S22 Wi-Fi |
|
Control panels |
| Name | Photo | Description |
|---|---|---|
| Blauberg CD-1 |
|
CO2 sensors |
| Blauberg CD-2 |
|
CO2 sensors |
| Name | Photo | Description |
|---|---|---|
| Blauberg FS2 |
|
Humidity sensor |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 265x213x48 G4 |
|
G4 panel filter |
