| Unit of measurement | Ducto Plus 125 | ||
| Speed | - | 1 | 2 |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | |
| Weight | kg | 0.75 | |
| Ambient air temperature min | °С | 1 | |
| Ambient air temperature max | °С | 40 | |
| Ingress protection rating | - | IPX4 | |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||

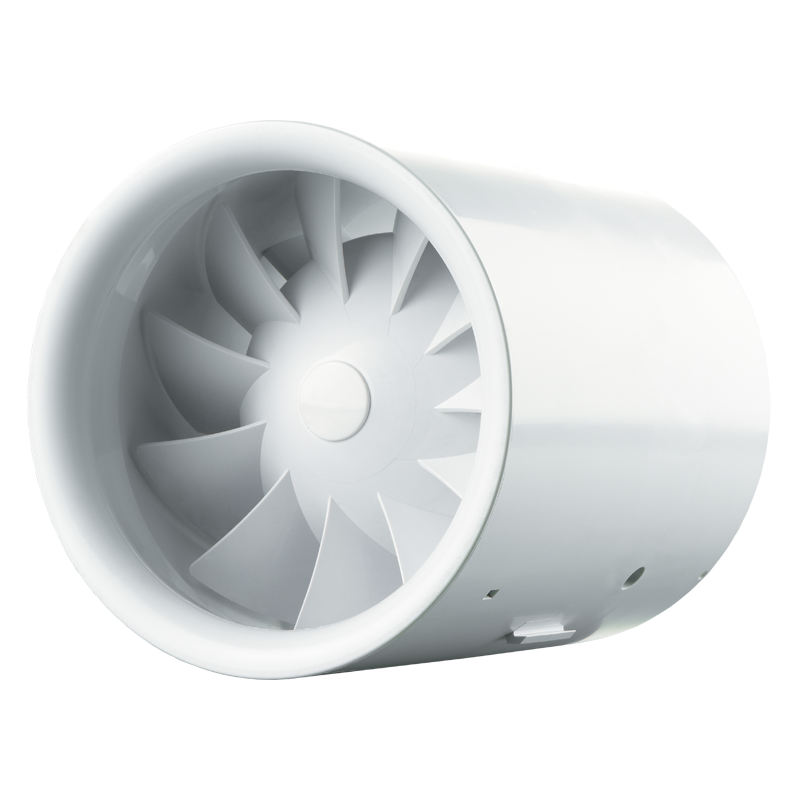

| Model | Ducto Plus 125 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -31.5 | B | -15.1 | E | -5.7 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | 2-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 215 | |||||
| Electric power input (W) | 13 | |||||
| Reference flow rate (m³/s) | 0.043 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.065 | |||||
| Control typology | Manual control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 49 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 81 | 81 | 81 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3355 | 1715 | 776 | ||||
| L | ØD |
|---|---|
| 161.5 | 125 |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDT E1.8 |
|
Thyristor speed controller |
