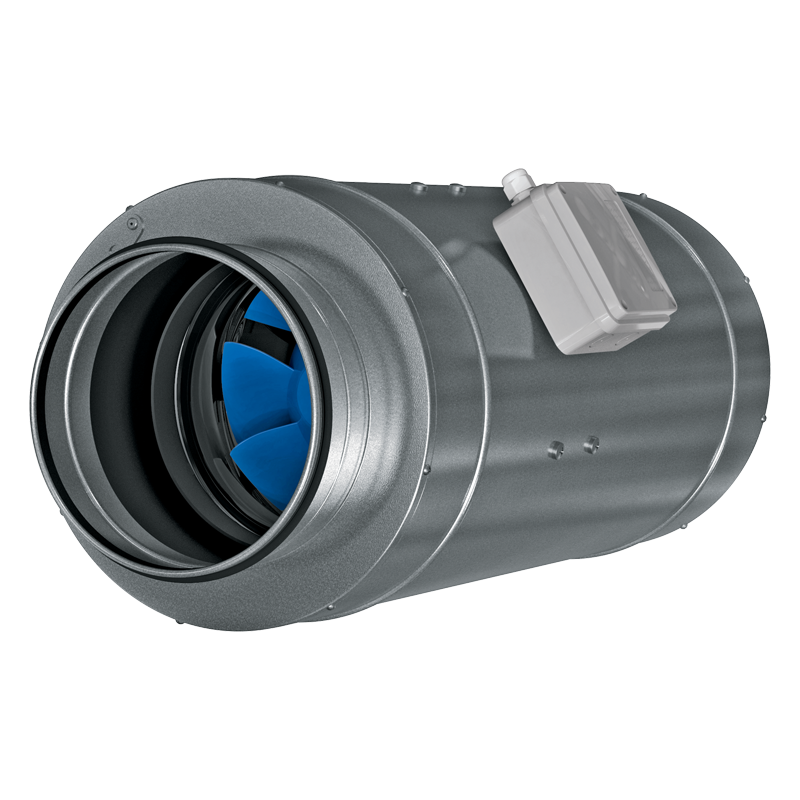

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Iso-Primo / Iso-Primo 400| Unit of measurement | Iso-Primo 400 | |||
| Speed | - | 1 | 2 | 3 |
| Phases | - | 1 | ||
| Minimum supply voltage | V | 230 | ||
| Maximum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 50 | ||
| Weight | kg | 22.8 | ||
| Transported air temperature (max) | °С | 55 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ambient air temperature min | °С | 1 | ||
| Ambient air temperature max | °С | 40 | ||
| Ingress protection rating | - | IPX4 | ||
| Ingress protection rating of the drive | - | IP20 | ||
| Impeller material | - | Plastic |
| Trademark | Blauberg |
| Model | Iso-Primo 400 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | Integrated VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 99 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 33 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.22 |
| Sound power level (dB(A)) | 58 |

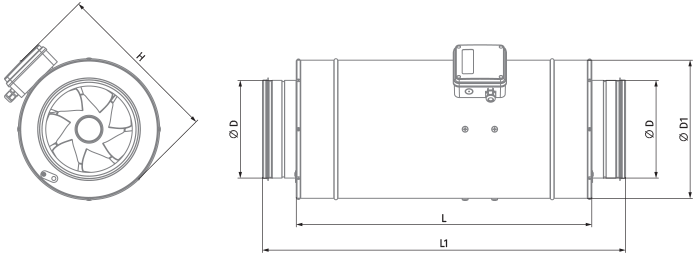

| Ø D | Ø D1 | H | L | L1 |
|---|---|---|---|---|
| 399 | 460 | 517 | 648 | 785 |
