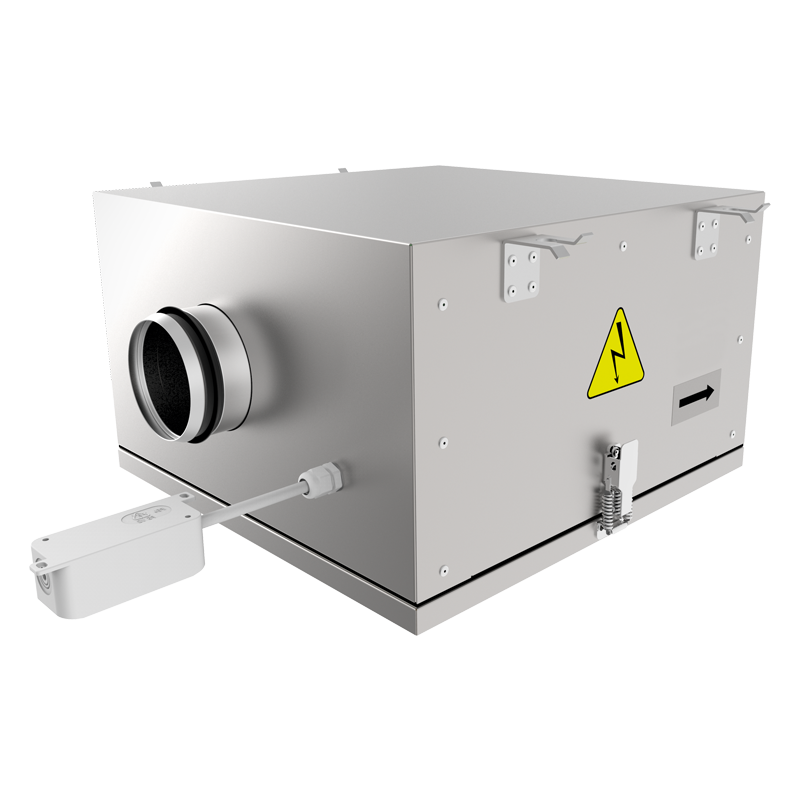

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Iso-RB / Iso-RB 200
| Unit of measurement | Iso-RB 200 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50 |
| Weight | kg | 22.6 |
| Transported air temperature (max) | °С | 55 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||
| Model | Iso-RB 200 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -50.9 | A+ | -23.8 | C | -8.3 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 690 | |||||
| Electric power input (W) | 152 | |||||
| Reference flow rate (m³/s) | 0.134 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.34 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 62 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 180 | 180 | 180 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||
| Ø D | B | B1 | H | L | L1 | L2 |
|---|---|---|---|---|---|---|
| 198 | 535 | 357.5 | 355 | 632 | 628 | 535 |
| Name | Photo | Description |
|---|---|---|
| Blauberg SD 200/600 |
|
Silencers for round ducts |
| Blauberg SD 200/900 |
|
Silencers for round ducts |
| Blauberg SD 200/1200 |
|
Silencers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg KFBK 200 |
|
Filter boxes for round ducts |
| Blauberg KFBT 200 G4 |
|
Filter boxes with pocket filters for round ducts |
| Blauberg KFBT 200 F5 |
|
Filter boxes with pocket filters for round ducts |
| Blauberg KFBT 200 F7 |
|
Filter boxes with pocket filters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg VRV 200 |
|
Backdraft dampers with spring for round ducts |
| Blauberg VKA 200 |
|
Air dampers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg WKH 200-2 |
|
Duct water heaters for round ducts |
| Blauberg WKH 200-4 |
|
Duct water heaters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg EKH 200-1.2 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 200-1.7 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 200-2.0 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 200-2.4 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 200-3.4 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 200-3.6 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 200-5.1 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 200-6.0 |
|
Duct electrical heaters for round ducts |
| Name | Photo | Description |
|---|---|---|

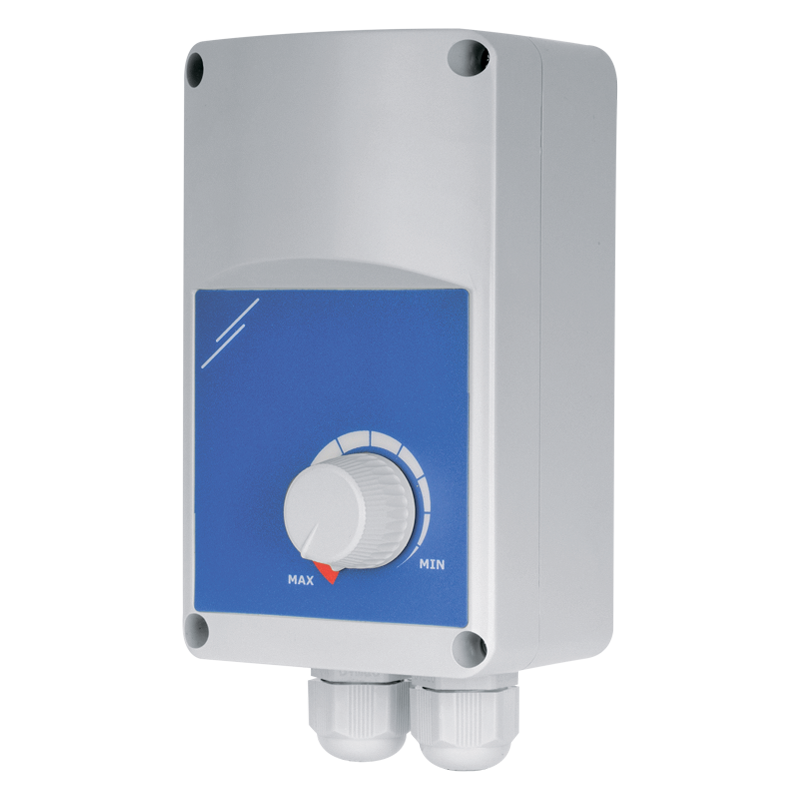

| Blauberg CDTE E3.0 TP |
|
Speed controllers |
| Blauberg CDTE E5.0 TP |
|
Speed controllers |
