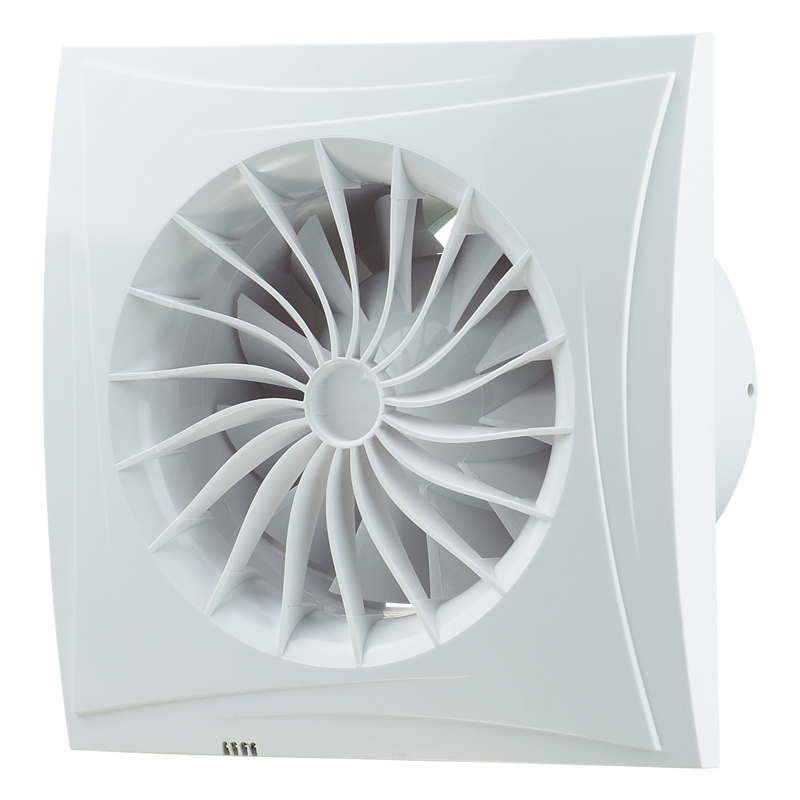

/ Product catalogue / Domestic ventilation / Residential centrifugal fans / Classic / Sileo DC / Sileo DC 100 IR| Unit of measurement | Sileo DC 100 IR | ||
| Speed | - | 1 | 2 |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50/60 | |
| Weight | kg | 0.55 | |
| Ambient air temperature min | °С | 1 | |
| Ambient air temperature max | °С | 40 | |
| Ingress protection rating | - | IP45 | |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||
| Model | Sileo DC 100 IR | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -55 | A+ | -27.9 | B | -12.4 | E | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | 2-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 101 | |||||
| Electric power input (W) | 3.5 | |||||
| Reference flow rate (m³/s) | 0.019 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.021 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 47 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 16 | 16 | 16 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||
| a | b | c | ∅ d | e |
|---|---|---|---|---|
| 136 | 158 | 81 | 100 | 26 |
