/ Product catalogue / Commercial and industrial ventilation / Roof exhaust fans / Centrifugal / Tower-H EC / Tower-H EC 225
| Unit of measurement | Tower-H EC 225 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Weight | kg | 8 |
| Transported air temperature (max) | °С | 60 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP55 |
| Impeller material | - | Plastic |
| Trademark | Blauberg |
| Model | Tower-H EC 225 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | Integrated VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 186 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 48.3 |
| Effective electric power input (kW) | 0.098 |
| Sound power level (dB(A)) | 67 |
| Declared typology | NRVU UVU |

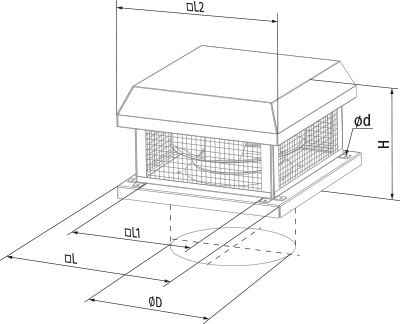

| ØD | Ød | H | L | L1 | L2 |
|---|---|---|---|---|---|
| 213 | 11 | 234 | 350 | 245 | 351 |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDT E/0-10 |
|
Speed control for EC motors |
