/ Product catalogue / Commercial and industrial ventilation / Roof exhaust fans / Centrifugal / Tower-V / Tower-V 250 2E
| Unit of measurement | Tower-V 250 2E | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Weight | kg | 9 |
| Transported air temperature (max) | °С | 50 |
| Transported air temperature (min) | °С | -25 |
| Ingress protection rating | - | IPX4 |
| Ingress protection rating of the drive | - | IP44 |
| Impeller material | - | Plastic |
| Trademark | Blauberg |
| Model | Tower-V 250 2E |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 211 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 20.1 |
| Effective electric power input (kW) | 0.208 |
| Sound power level (dB(A)) | 85 |
| Declared typology | NRVU UVU |

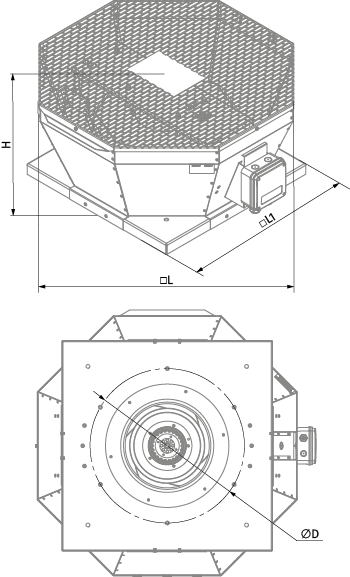

| ØD | H | L | L1 |
|---|---|---|---|
| 285 | 240 | 481 | 425 |
| Name | Photo | Description |
|---|---|---|

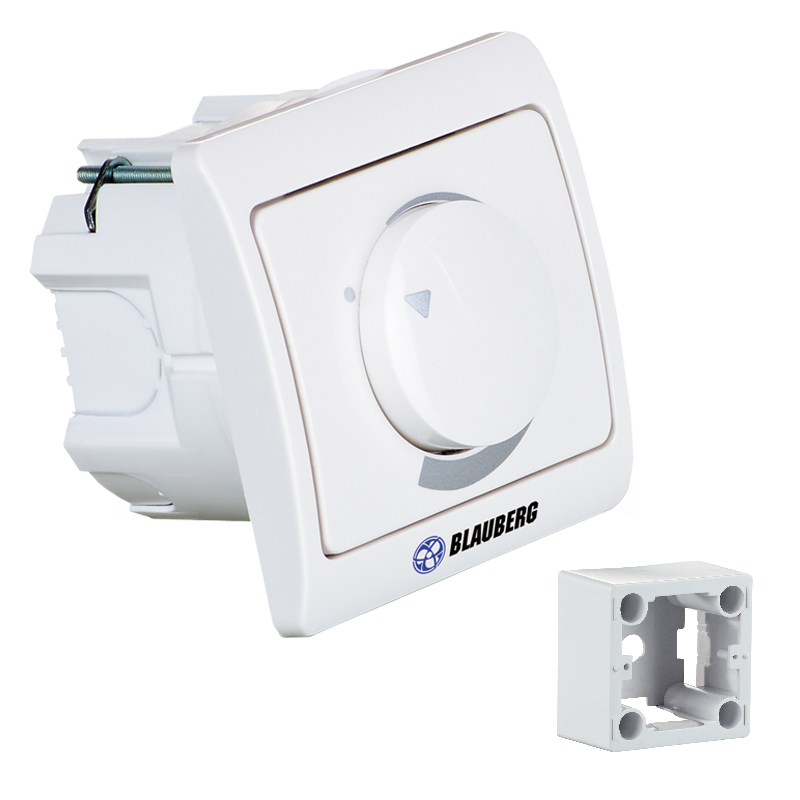

| Blauberg CDT E1.8 |
|
Thyristor speed controller |
