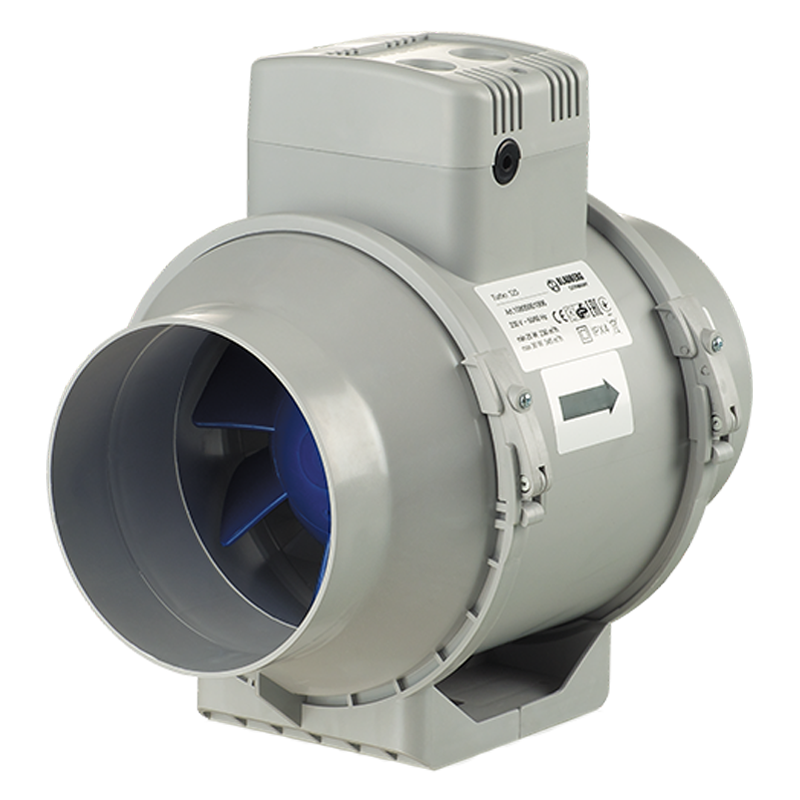

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Turbo / Turbo 125| Unit of measurement | Turbo 125 | ||
| Speed | - | 1 | 2 |
| Phases | - | 1 | |
| Minimum supply voltage | V | 230 | |
| Maximum supply voltage | V | 230 | |
| Power supply frequency | Hz | 50/60 | |
| Weight | kg | 2.15 | |
| Transported air temperature (max) | °С | 60 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IPX4 | |
| Impeller material | - | Plastic |
| Trademark | Blauberg | |||||
| Model | Turbo 125 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -53.6 | A+ | -26.6 | B | -11.1 | E | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 275 | |||||
| Electric power input (W) | 29 | |||||
| Reference flow rate (m³/s) | 0.053 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.13 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 54 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 69 | 69 | 69 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5536 | 2830 | 1280 | ||||
| Ø D | Ø D1 | B | H | L |
|---|---|---|---|---|
| 123 | 164 | 196 | 241 | 258 |
| Name | Photo | Description |
|---|---|---|
| Blauberg SD 125/600 |
|
Silencers for round ducts |
| Blauberg SD 125/900 |
|
Silencers for round ducts |
| Blauberg SD 125/1200 |
|
Silencers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg KFBK 125 |
|
Filter boxes for round ducts |
| Blauberg KFBT 125 G4 |
|
Filter boxes with pocket filters for round ducts |
| Blauberg KFBT 125 F5 |
|
Filter boxes with pocket filters for round ducts |
| Blauberg KFBT 125 F7 |
|
Filter boxes with pocket filters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg VRV 125 |
|
Backdraft dampers with spring for round ducts |
| Blauberg VKA 125 |
|
Air dampers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg WKH 125-2 |
|
Duct water heaters for round ducts |
| Blauberg WKH 125-4 |
|
Duct water heaters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg EKH 125-0.6 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-0.8 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-1.2 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-1.6 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-2.4 |
|
Duct electrical heaters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDT E1.8 |
|
Thyristor speed controller |
| Blauberg CDT1 E0.5 |
|
Multi-speed switches |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDP-2/5 |
|
Multi-speed switch |
| Blauberg CDP-2/10 |
|
Multi-speed switch |
| Name | Photo | Description |
|---|---|---|
| Blauberg HSE / HSI 1.5 |
|
Sensors |
| Blauberg TE / TI 1.5 |
|
Timers |
| Blauberg LSE / LSI 1.5 |
|
Sensors |
| Blauberg IRSE / IRSI 1.5 |
|
Sensors |
| Name | Photo | Description |
|---|---|---|
| Blauberg K 125 |
|
Clamp for round flexible ducts |
