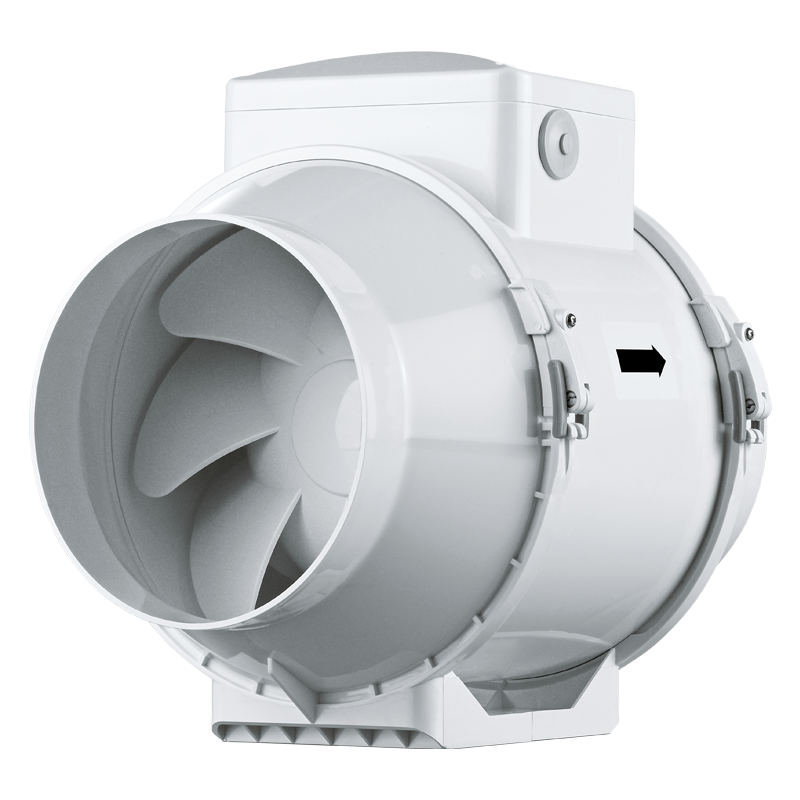

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Turbo EC eco / Turbo EC 125 eco
| Unit of measurement | Turbo EC 125 eco | ||
| Phases | - | 1 | |
| Minimum supply voltage | V | 230 | |
| Maximum supply voltage | V | 230 | |
| Power supply frequency | Hz | 50/60 | |
| Maximum airflow | m³/h | 228 | 275 |
| Weight | kg | 1.79 | |
| Transported air temperature (max) | °С | 40 | |
| Transported air temperature (min) | °С | -25 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IPX4 | |
| Impeller material | - | Plastic | |
| Trademark | Blauberg | |||||
| Model | Turbo EC 125 eco | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -49.3 | A+ | -24.3 | C | -9.9 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 280 | |||||
| Electric power input (W) | 37 | |||||
| Reference flow rate (m³/s) | 0.049 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.135 | |||||
| Control typology | Local demand control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 57 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 78 | 78 | 78 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 5131 | 2623 | 1186 | ||||

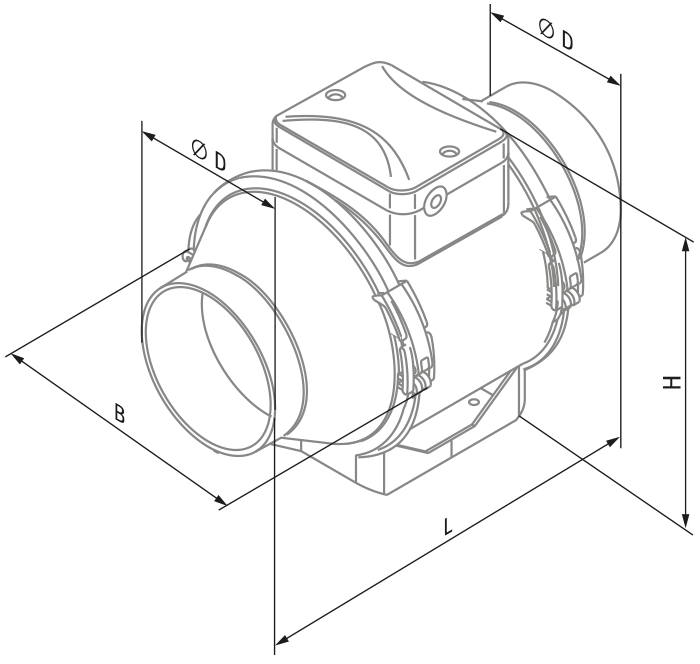

| ∅ D | B | H | L |
|---|---|---|---|
| 123 | 167 | 190 | 246 |
| Name | Photo | Description |
|---|---|---|
| Blauberg SD 125/600 |
|
Silencers for round ducts |
| Blauberg SD 125/900 |
|
Silencers for round ducts |
| Blauberg SD 125/1200 |
|
Silencers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg KFBK 125 |
|
Filter boxes for round ducts |
| Blauberg KFBT 125 G4 |
|
Filter boxes with pocket filters for round ducts |
| Blauberg KFBT 125 F5 |
|
Filter boxes with pocket filters for round ducts |
| Blauberg KFBT 125 F7 |
|
Filter boxes with pocket filters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg VRV 125 |
|
Backdraft dampers with spring for round ducts |
| Blauberg VKA 125 |
|
Air dampers for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg WKH 125-2 |
|
Duct water heaters for round ducts |
| Blauberg WKH 125-4 |
|
Duct water heaters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg EKH 125-0.6 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-0.8 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-1.2 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-1.6 |
|
Duct electrical heaters for round ducts |
| Blauberg EKH 125-2.4 |
|
Duct electrical heaters for round ducts |
| Name | Photo | Description |
|---|---|---|
| Blauberg CDP-2/5 |
|
Multi-speed switch |
| Blauberg CDP-2/10 |
|
Multi-speed switch |
