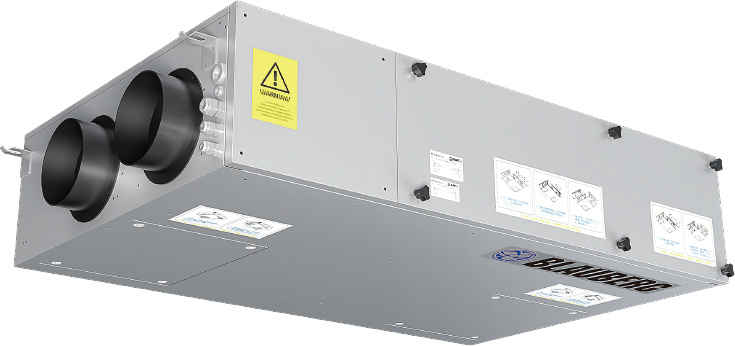

Series Blauberg KOMFORT D6B

Brand new smart air solution for ultra-low energy consumption buildings

Heat exchanger type: Counter flow
CO2 sensor
PM2.5 sensor

The Core Component of Heat Recovery Ventilation Systems

	Washable Heat Exchanger Plate-fin counterflow heat exchanger, designed according to passive house requirements, efficiently regulates the overall indoor thermal and humidity environment. It inhibits bacteria and mold, ensuring air cleanliness. Its compact and exquisite structure allows for full washability, ensuring an extended lifespan.

	High-efficiency Direct Current Variable Frequency Fan Direct current variable frequency technology enables intelligent airflow output. Stable speed output ensures constant airflow, with airflow precision up to ±5%. High efficiency with low consumption and excellent speed control performance. Dual thermal protection, overvoltage, and overcurrent protection automatically cut off the current in case of abnormal sudden situations.

	Composite High-Efficiency Filtering Mesh Fresh Air: G4+F7; Exhaust Air: G4, multiple filtration layers, achieving up to 97%; purification efficiency. Utilizes healthy physical filtration. Rejecting the ozone brought by electrostatic filters.

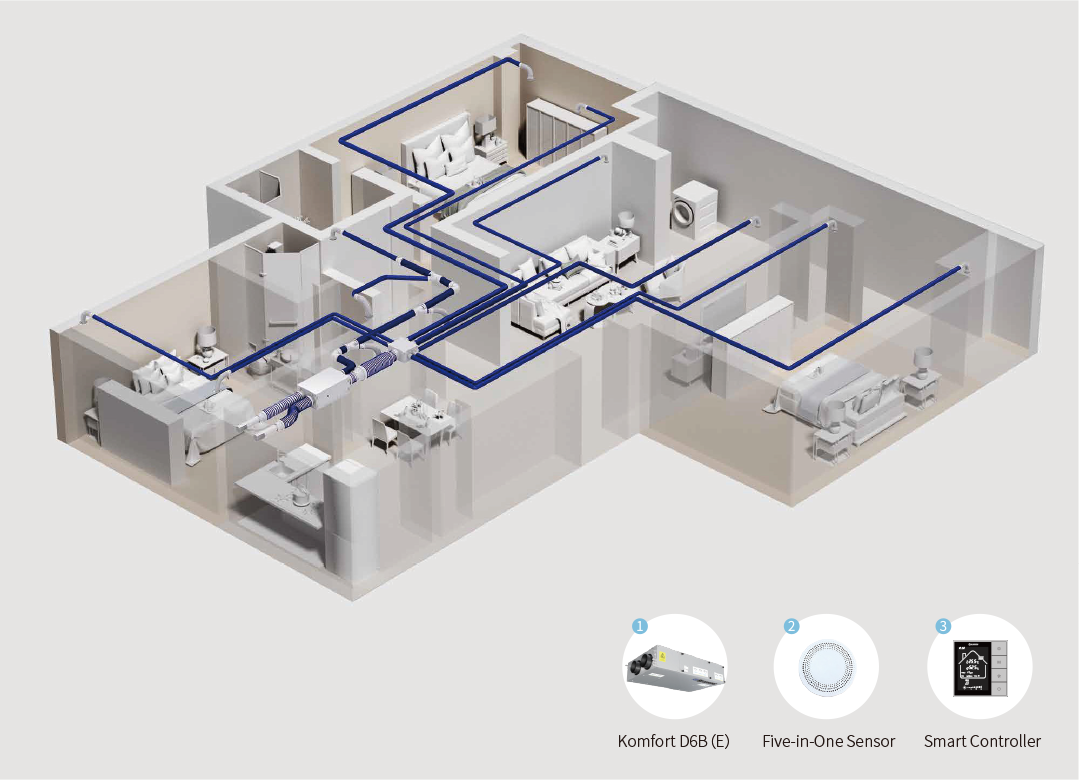

Ultra-low Energy Consumption Buildings:
Brand New Smart Air Solutions

Four Operating Modes to Address Fresh Air Requirements in Ultra-Low Energy Buildings

Intelligent / Manual Mode
Automatically adjusts based on CO2 and PM2.5 concentration, intelligently regulating indoor air environment with three adjustable airflow levels, allowing for personalized switching.
Heat Exchange Mode
Efficiently recovers the thermal energy from indoor exhaust air to prevent energy waste, ensuring energy-saving comfort.
Single Supply Mode
When outdoor pollution is severe, it ensures indoor air quality while reducing filter wear.
Bypass Mode
During transitional seasons, automatically activates bypass function based on indoor and outdoor enthalpy difference, efficiently saving energy.

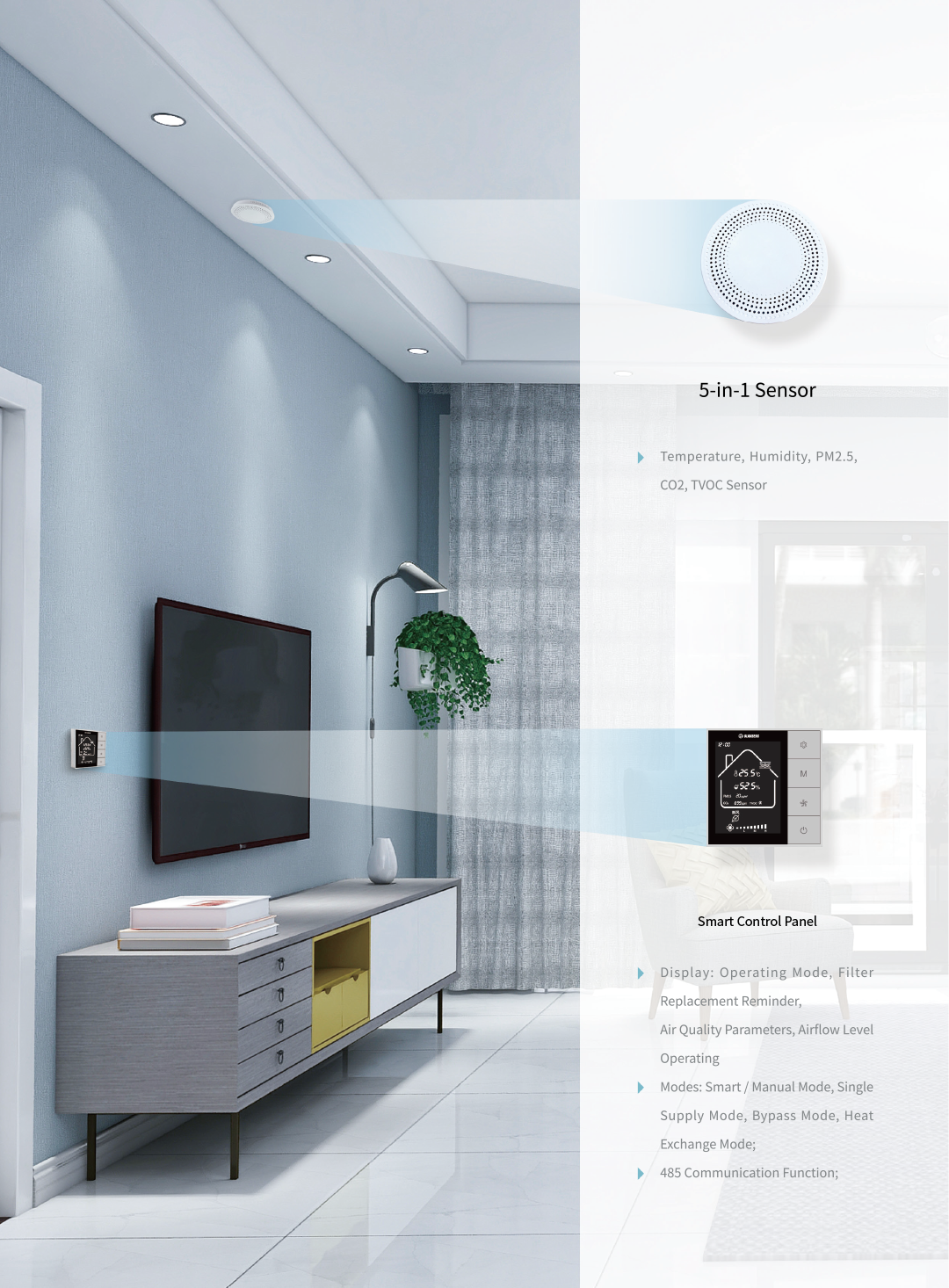

Intelligent Control System

Equipment Maintenance and Installation Instructions

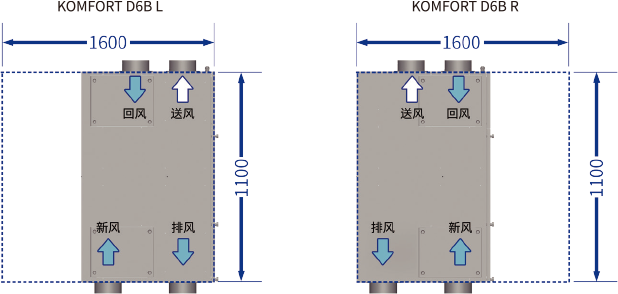

Inspection Port Dimensions

*Left and Right Type Definition: When viewing the equipment from above, along the direction of the airflow, if the side inspection cover is on the left side, it is considered the left type; if it's on the right side, it's considered the right type.

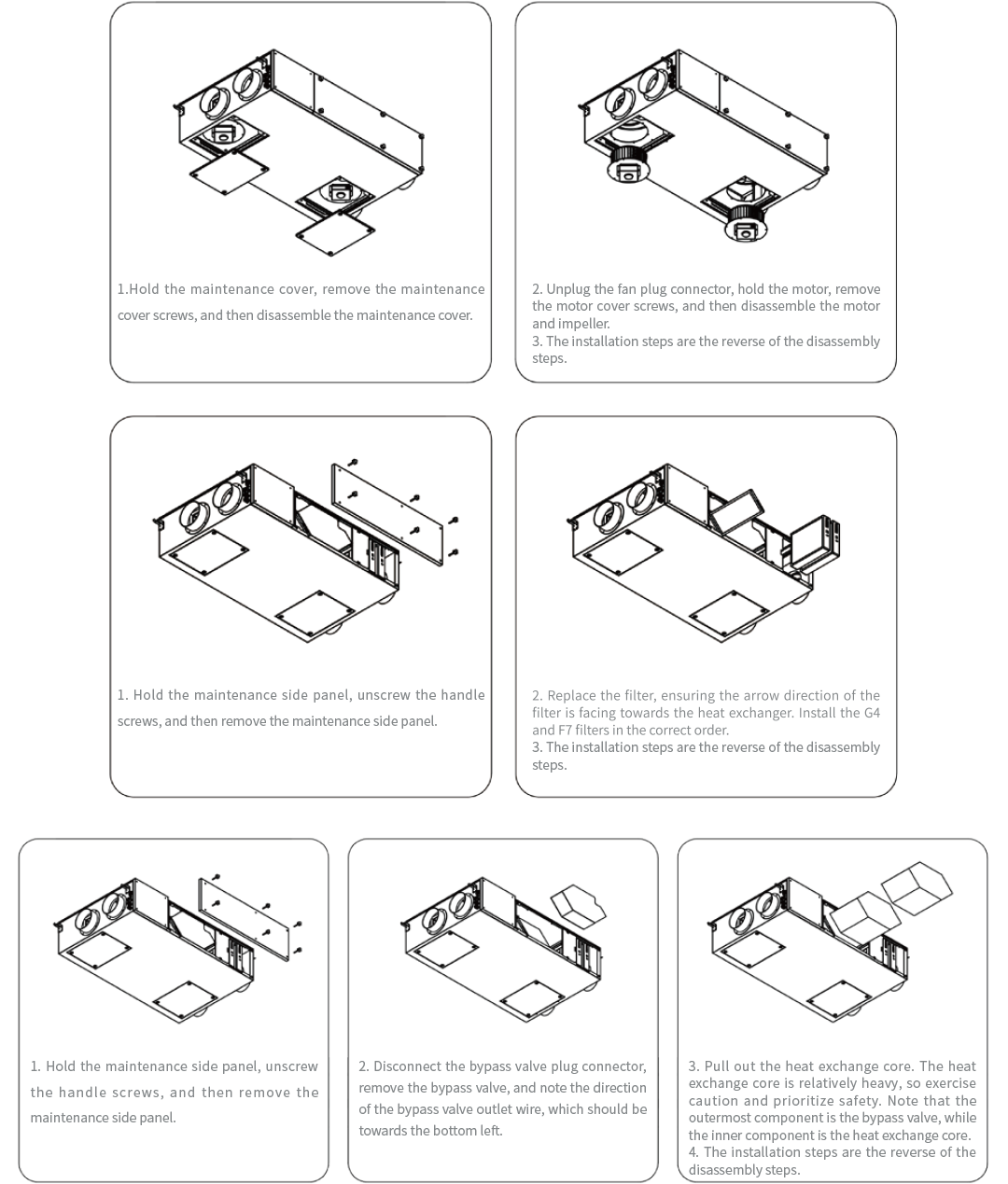

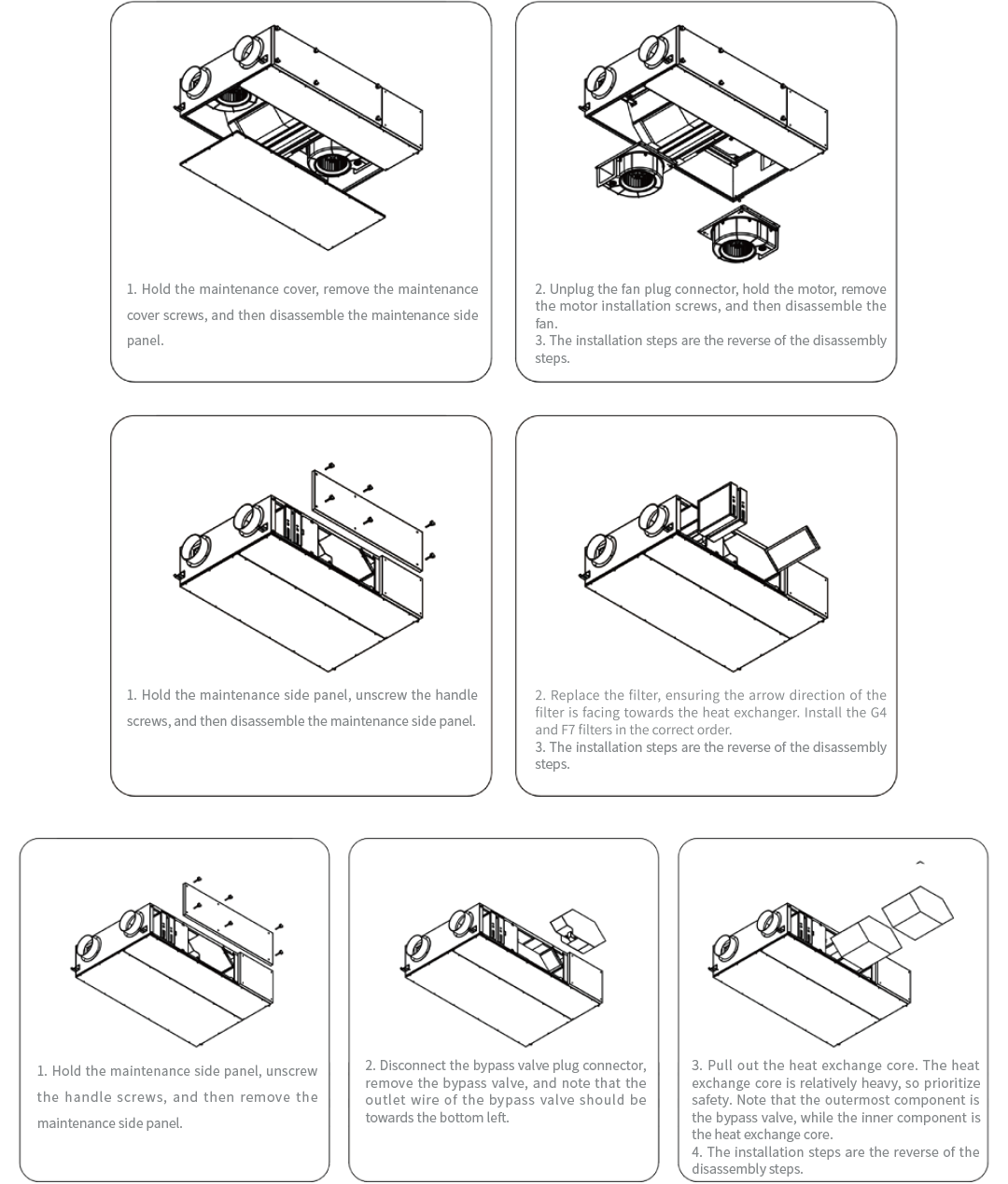

Maintenance Method

Left Type

Right type

Filters: Temperature sensor: Yes

Lineup Blauberg KOMFORT D6B	Maximum airflow, m³/h	Service side	Preheater
KOMFORT D6B 150 L	150	Left
KOMFORT D6B 150 R	150	Right
KOMFORT D6B 150 L E	150	Left	Electric
KOMFORT D6B 150 R E	150	Right	Electric
KOMFORT D6B 250 L	250	Left
KOMFORT D6B 250 R	250	Right
KOMFORT D6B 250 L E	250	Left	Electric
KOMFORT D6B 250 R E	250	Right	Electric
KOMFORT D6B 350 L	350	Left
KOMFORT D6B 350 R	350	Right
KOMFORT D6B 350 L E	350	Left	Electric
KOMFORT D6B 350 R E	350	Right	Electric
