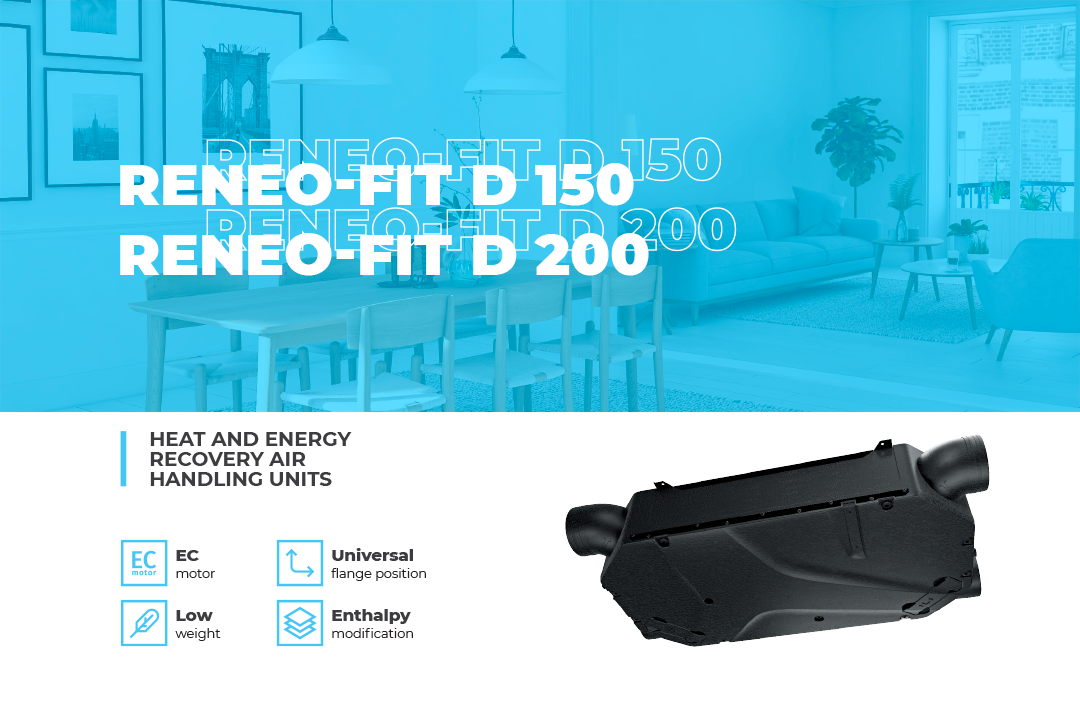

Air handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings.
EPP casing with its aerodynamic shape and excellent insulation characteristics.
The units are designed for suspended ceiling mounting, floor mounting, vertical or horizontal wall mounting.
Heat recovery minimizes ventilation heat losses during the cold season and reduces air conditioner load during the hot season.
The units are equipped with a bypass, which can be opened if there is a need to cool down the ventilated area with cool intake air.
Controllable air exchange for creating the best suitable indoor microclimate.
Available for installation with S21 controller.
The units are available with a counter-flow polystyrene heat exchanger or an enthalpy counter-flow heat exchanger.

Design

The Reneo-Fit D units have adjustable oriental connection options of the flanges to provide more flexible mounting solutions.

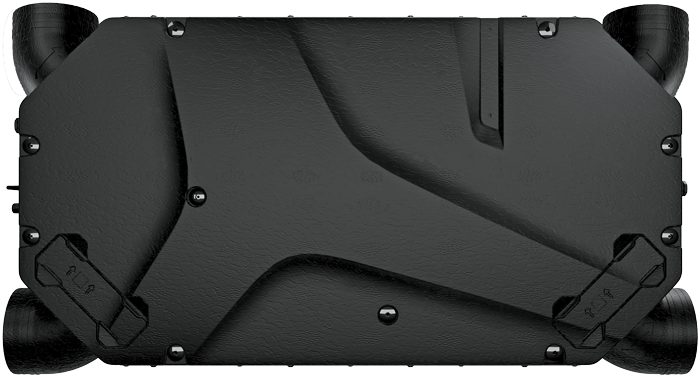

EPP casing

Blauberg Reneo-Fit D is made from a modern material – extruded polypropylene (ЕРР). The material is very light, which allows to decrease the total weight of the system and ensures easy installation. ЕРР resists corrosion, preserving the product’s long-term high efficiency. It also has a low thermal conductivity, allowing to decrease heat losses in the ventilation system. This ensures more effective system operation and reduces air conditioning and heating expenses.

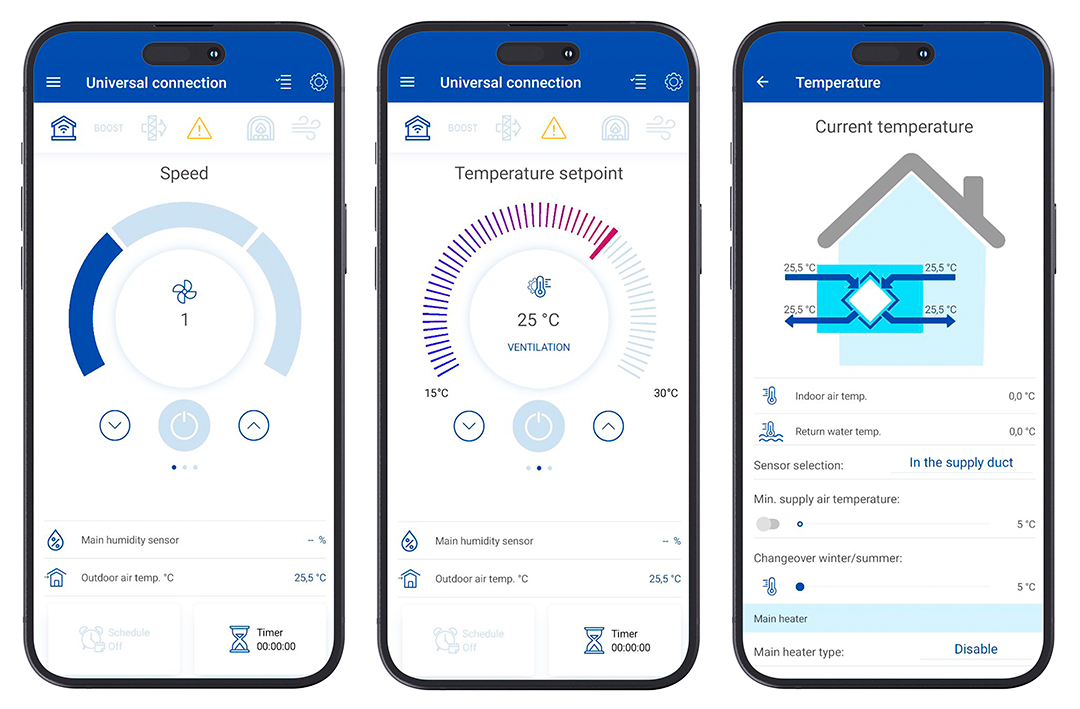

All functions in your smartphone

Reneo – it’s not just ventilation, it’s a real climate station in your home. With the S21 controller you can control all functions and parameters via the mobile app (the controller is not included in the delivery set).

AND EVEN MORE

Just say «Hello Google» and test, control and run Reneo in English, German, Swedish, Norwegian, Danish, Polish, Dutch, French, Spanish*.

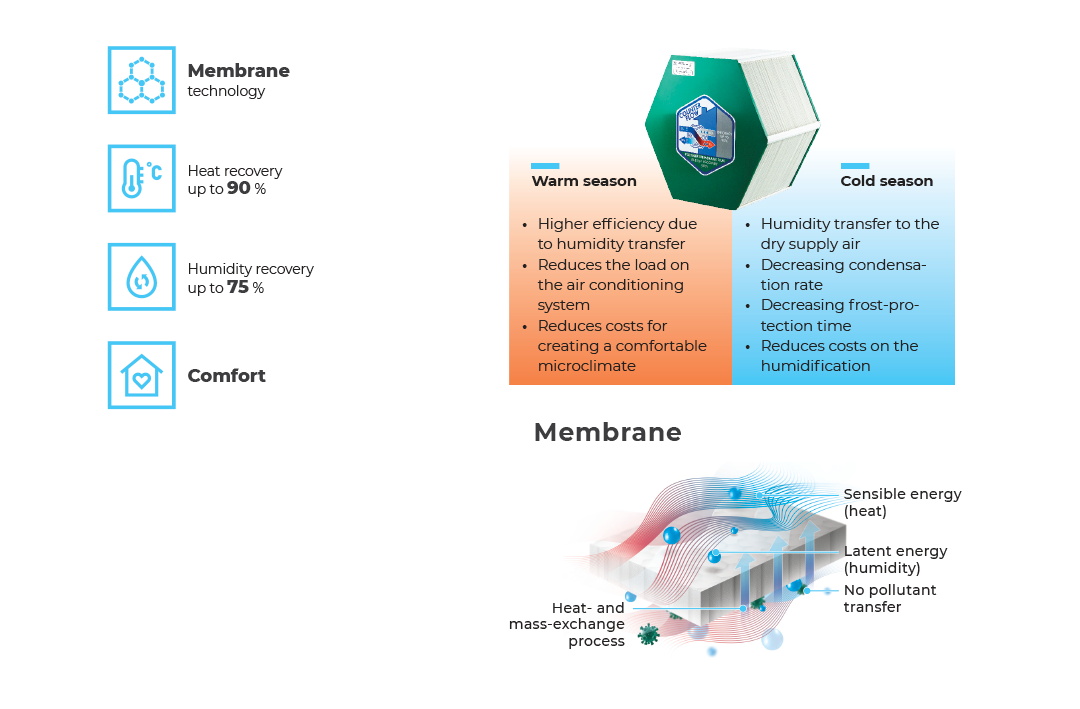

Enthalpy heat exchanger

If air humidity management is just as important for you as temperature management, then enthalpy heat exchanger is your best choice (The Reneo-Fit D...-E unit).

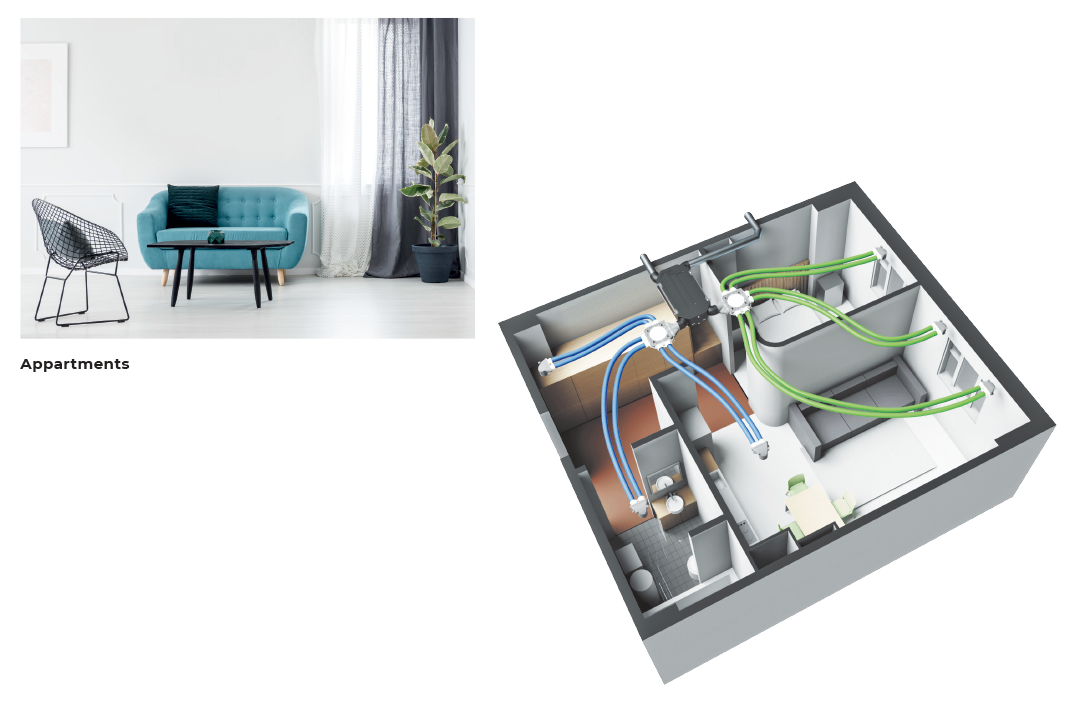

Application

Lineup Blauberg Reneo-Fit D	Maximum airflow, m³/h	Service side	Control system	Preheater	Reheater	BMS protocol
Reneo-Fit D 150 R S21	229	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 150 L S21	229	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 150 R S14	229	Right	S14			N/A
Reneo-Fit D 150 L S14	229	Left	S14			N/A
Reneo-Fit D 150-E R S21	229	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 150-E L S21	229	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 150-E R S14	229	Right	S14			N/A
Reneo-Fit D 150-E L S14	229	Left	S14			N/A
Reneo-Fit D 200 R S21	279	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 200 L S21	279	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 200 R S14	279	Right	S14			N/A
Reneo-Fit D 200 L S14	279	Left	S14			N/A
Reneo-Fit D 200-E R S21	279	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 200-E L S21	279	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 200-E R S14	279	Right	S14			N/A
Reneo-Fit D 200-E L S14	279	Left	S14			N/A
Reneo-Fit D 230 R S21 CF	240	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 230 L S21 CF	240	Left	S21	Optional	Optional	ModBus
Reneo-Fit D 230-E R S21 CF	240	Right	S21	Optional	Optional	ModBus
Reneo-Fit D 230-E L S21 CF	240	Left	S21	Optional	Optional	ModBus
