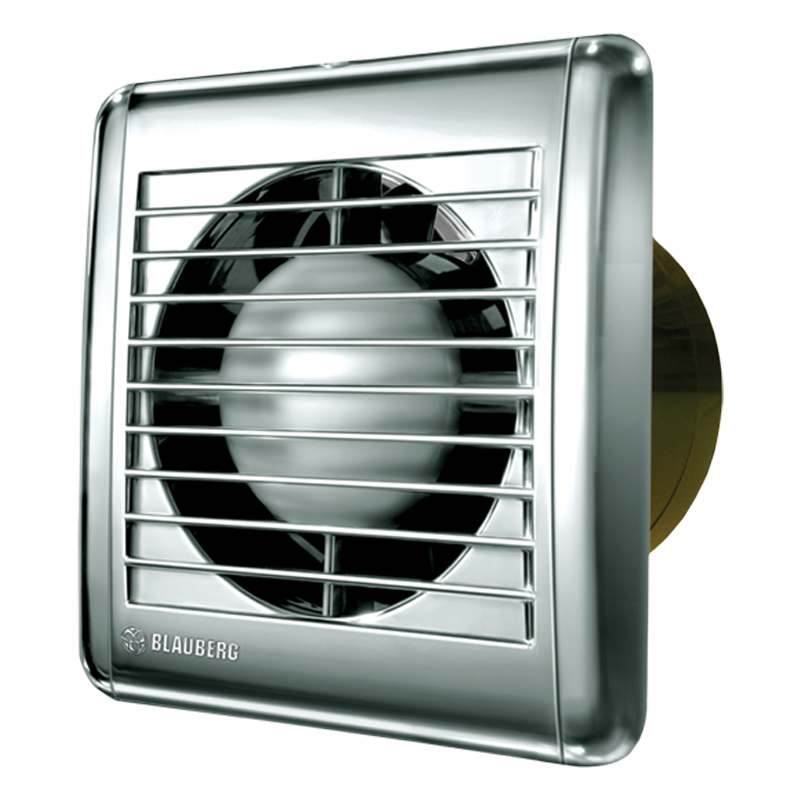

Ventilation sets and ventsBlauberg Aero Still Chrome 100
Extract fan for low-noise applications. Maximum air capacity up to 84 m³/h.
EAN4058448003387
3D-view
Gallery
- Description
- Characteristics
- Downloads
- Modifications
- DIMENSIONS
- Designation key
Description
Description
|
FEATURES  |
 |
||||||||||||||||||||||||||||||
| Wall and ceiling mounting. Low energy consumption and noise. Easy maintenance. Continuous operation. Backdraft damper.Ball bearing motor. Available in chrome (Aero Chrome) and gold (Aero Gold) decorations.5 year warranty. |
|||||||||||||||||||||||||||||||
|
OPTIONS
|
|||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||
| MOUNTING EXAMPLE |
|||||||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||||
Characteristics
Characteristics
| Parameter | Aero Still Chrome 100 | Aero Still Chrome 100 T | Aero Still Chrome 100 H | Measurement unit |
|---|---|---|---|---|
| Voltage | 220-240 | 220-240 | 220-240 | V |
| Frequency | 50 | 50 | 50 | Hz |
| Power | 5.5 | 5.5 | 5.5 | W |
| Current | 0.035 | 0.035 | 0.035 | A |
| Maximum air flow | 23 | 23 | 23 | l/s |
| Maximum air flow | 84 | 84 | 84 | m³/h |
| Sound pressure level | 25* | 25* | 25* | dBА |
| SFP | 0.24 | 0.24 | 0.24 | W/l/s |
| Connection diameter | 100 | 100 | 100 | mm |
| Design | axial | axial | axial | - |
| Type | Exhaust | Exhaust | Exhaust | - |
| Style | Chrome | Chrome | Chrome | - |
| Mounting | ceiling mounting, wall mounting | ceiling mounting, wall mounting | ceiling mounting, wall mounting | - |
| * | Sound pressure level measured in free space at a distance of 3 meters from the fan | Sound pressure level measured in free space at a distance of 3 meters from the fan | Sound pressure level measured in free space at a distance of 3 meters from the fan | - |
Documents archieve
Documents archieve
Select a document type
Modifications
| Modification name |
|---|
| Aero Still Chrome 100 |
| Aero Still Chrome 100 H |
| Aero Still Chrome 100 T |
| Modification name | Timer | Humidity sensor | Pull-cord switch | No extra functions |
|---|---|---|---|---|
| Aero Still Chrome 100 | - | - | - |
|
| Aero Still Chrome 100 H |
|
|
- | - |
| Aero Still Chrome 100 T |
|
- | - | - |
|
|
|
|
|
|
DIMENSIONS
DIMENSIONS
| Model | Dimensions [mm] | ||||
| a | b | c | Ø d | e | |
| Aero Still Chrome 100 | 144 | 122 | 92.5 | 100 | 29.5 |
Designation key
Designation key
| Aero | Still | Gold | 125 | SH | |
| Model | Silent | Color | Spigot diameter | Option |
