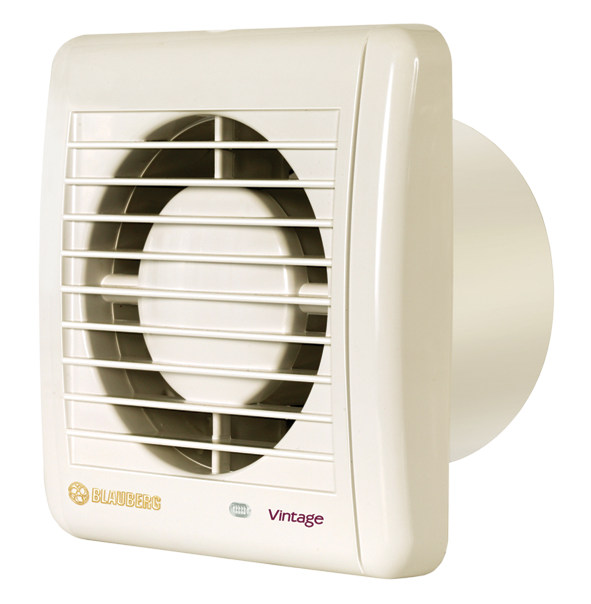

    Blauberg Aero Vintage 100

    Aero Vintage 100
    • Aero Vintage 100
    photo-zoom
    Print version
    Extract fans. Maximum air flow up to 102 m³/h.
    EAN codeEAN4058448003813
    Add to project
    To comparison
    • Description
    • Characteristics
    • Capacity diagram
    • Downloads
    • Modifications
    • Designation key
    • Dimensions
    Description
    Description

    FEATURES

    OPTIONS

    Model

    		  Aero 100/125/150
    Option S T ST H SH
    Pull-cord switch •   •    •
    Timer   • • • •
    Humidity sensor       • •

    Turn-off delay adjustable from 2 to 30 min. Humidity setpoint adjustable from 60 % up to 90 %.

    Wall and ceiling mounting.
    Aero (127-220V/60Hz) series models are equipped with specially designed motors compatible with both 127 V and 220 V power mains.Easy maintenance.Continuous operation.
    Backdraft damper.
    Ball bearing motor.Available in chrome (Aero Chrome) and gold (Aero Gold) decorations.5 year warranty.
    MOUNTING EXAMPLE
    Characteristics
    Characteristics
    Parameter Aero Vintage 100 Aero Vintage 100 S Aero Vintage 100 T Aero Vintage 100 ST Aero Vintage 100 H Aero Vintage 100 SH Measurement unit
    Voltage 220-240 220-240 220-240 220-240 220-240 220-240 V
    Frequency 50 50 50 50 50 50 Hz
    Power 14 14 14 14 14 14 W
    Current 0.085 0.085 0.085 0.085 0.085 0.085 A
    RPM 2300 2300 2300 2300 2300 2300 min-1
    Maximum air flow 28 28 28 28 28 28 l/s
    Maximum air flow 102 102 102 102 102 102 m³/h
    Sound pressure level 38 38 38 38 38 38 dBА
    SFP 0.49 0.49 0.49 0.49 0.49 0.49 W/l/s
    Connection diameter 100 100 100 100 100 100 mm
    Design axial axial axial axial axial axial -
    Type Exhaust Exhaust Exhaust Exhaust Exhaust Exhaust -
    Style Vintage Vintage Vintage Vintage Vintage Vintage -
    Mounting ceiling mounting, wall mounting ceiling mounting, wall mounting ceiling mounting, wall mounting ceiling mounting, wall mounting ceiling mounting, wall mounting ceiling mounting, wall mounting -
    Capacity diagram
    Capacity diagram
    • Selection method:
    • Air capacity:
    • Pressure:
    Operating point
    • Air capacity: --
    • Pressure: ---
    Documents archieve
    Documents archieve
    Select a document type
    • Catalogues
    • Technical documentation
    • Certificates
    Name
    Download
    Show
    Aero Vintage - data sheet (pdf 1007.65Kb)
    Aero Vintage - image (png 368.33Kb)
    Aero Vintage - user manual (pdf 768.18Kb)
    Modifications
    Modification name
    Aero Vintage 100
    Aero Vintage 100 H
    Aero Vintage 100 S
    Aero Vintage 100 SH
    Aero Vintage 100 ST
    Aero Vintage 100 T
    Modification name Timer Humidity sensor Pull-cord switch No extra functions
    Aero Vintage 100 - - -
    Aero Vintage 100 H - -
    Aero Vintage 100 S - - -
    Aero Vintage 100 SH -
    Aero Vintage 100 ST - -
    Aero Vintage 100 T - - -
    +
    +
    +
    +
    +
    +
    Designation key
    Designation key
    Aero Vintage 100 S (127-220V/60Hz)
    Model Color Spigot diameter Option Voltage

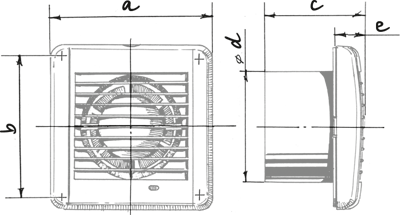

    Dimensions
    Dimensions



    Model Dimensions [mm]
    a b c Ø d e
    Aero Vintage 100 144 122 92.5 100 29.5
