Ventilation sets and ventsBlauberg BELIMO CM24
- Description
- Characteristics
- Downloads
- DIMENSIONS
- WIRING DIAGRAM
Description
Description
| FEATURES
For controlling air dampers with cross section up to 0.4 m² installed in various ventilation and air conditioning systems. CONTROLThe air flow control damper can be controlled by means of the three-point or open-close controlling. |
DESIGN
The electric actuator is provided with a 2 Nm actuating torque and an overload protection. The actuator is installed directly on the air damper shaft. The angle of rotation is adjusted by mechanical end stops. |
Characteristics
Characteristics
| Parameter | BELIMO СМ24 | Measurement unit |
|---|---|---|
| Voltage | 24 | V |
| Frequency | 50/60 | Hz |
| Nominal voltage range |
19.2...28.8 ~ 19.2...28.8 = |
V |
| Rated power | 1 | VA |
| Power consumption in operation | 0.5 | W |
| Power consumption at rest | 0.5 | W |
| Connecting cable | 1 m long, 3 x 0.75 mm2 | - |
| Positioning accuracy | ± 5 | % |
| Sound pressure level | 35 | dBА |
| Direction of rotation | determined by terminal connection | - |
| Torque | 2 (at nominal voltage) | Nm |
| Angle of rotation no end stop | endless fixed 315° | - |
| Angle of rotation with an end stop | adjustable 0...287.5° in 2.5° increments | - |
| Electrical protection class | III low voltage, II totally insulated | - |
| Operation temperature | -30…+50 | °С |
| Swing time | 75 sec / 90° | sec |
| Storage temperature | -40…+80 | °С |
| Ingress protection rating | IP54 | - |
| Position indication | mechanical | - |
| Ambient humidity | 95 %, no condensation | % |
| Maintenance | not required | - |
| Weight | 0.13 | kg |
Documents archieve
Documents archieve
Select a document type

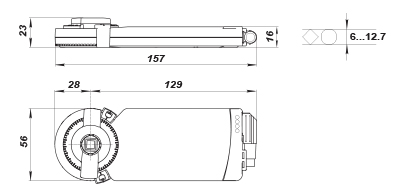

DIMENSIONS
DIMENSIONS
WIRING DIAGRAM
WIRING DIAGRAM
