    Blauberg BlauFast OPZ 125/52x2

    BlauFast OPZ 125/52x2
    • BlauFast OPZ 125/52x2
    photo-zoom
    Print version
    Ceiling-mounted plastic connector
    EAN codeEAN4058448084461
    Add to project
    To comparison
    • Description
    • Characteristics
    • Downloads
    • Overall dimensions
    Description
    Description
    For supply and exhaust systems in residential premises. For under-ceiling mounting. Connecting the ventilation grille to 117×52 mm ducts. Connecting dimensions: 117×52 and Ø 125 mm. Ducts are fastened with BlauFast S locks, purchased separately.   To ensure air tightness class C, a BlauFast OL 52 seal (purchased separately) is mounted on a duct.Made of polypropylene (PP) with thermoplastic elastomer (SEBS). Operating temperature: from -20 to +60 °C.
    Characteristics
    Characteristics
    Parameter BlauFast OPZ 125/52x2 Measurement unit
    Air duct for oval air ducts -
    Material polypropylene (PP) with thermoplastic elastomer (SEBS) -
    Device connector -
    Documents archieve
    Documents archieve
    Select a document type
    • Catalogues
    • Technical documentation
    • Certificates
    Name
    Download
    Show
    Catalogue "BlauFast system 52 semi-rigid air duct system" (pdf 1.86Mb)
    BlauFast OPZ 125/52x2 - image (png 349.25Kb)

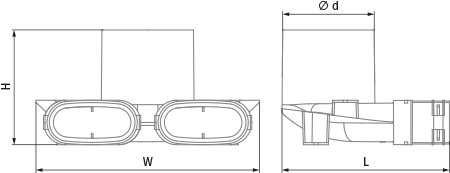

    Overall dimensions
    Overall dimensions
    Ø d (inner) [mm] H [mm] L [mm] W [mm]
    127 163 240 320
