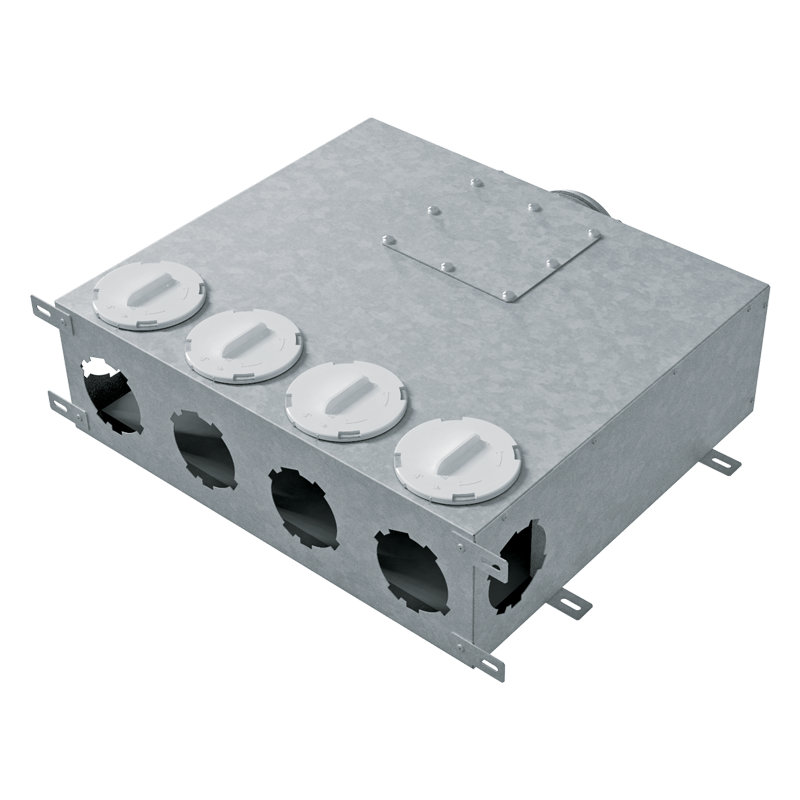

Ventilation sets and ventsBlauberg BlauFast SR 125/90x6 01
Supply or exhaust ventilation systems of residential spaces. Distribution of air from the ventilation unit through the ducts.
EAN4058448075230 - Description
- Characteristics
- Downloads
- Dimensions
Description
Description
| The main air duct flange is sealed with a rubber gasket.The ducts are connected using BlauFast RKF 90 flanges of appropriate size.The flanges are not included in the delivery set. | Any unused ports are sealed off with BlauFast RSP 90 air distribution box plugs.Made of steel with aluzinc coating.Internal sound insulation layer. |
| Air capacity [m³/h] | Number of duct connections | Air supply, resistance [Pa] | Air exhaust, resistance [Pa] |
| 40 | 1 | 1.2 | 0.1 |
| 90 | 2 | 3.0 | 1.4 |
| 135 | 3 | 5.3 | 3.8 |
| 180 | 4 | 7.2 | 5.8 |
| 225 | 5 | 8.9 | 7.5 |
| 270 | 6 | 10.5 | 9.1 |
Characteristics
Characteristics
| Parameter | BlauFast SR 125/90x6 01 | Measurement unit |
|---|---|---|
| Width | 90 | mm |
| Air duct | for round air ducts | - |
| Material | aluzinc coated steel | - |
| Device | air distribution box | - |
Documents archieve
Documents archieve
Select a document type
Dimensions
Dimensions
 |
|
