Blauberg CD-2

Indoor carbon dioxide concentration measurement. Air flow control depending on CO₂ concentration. Efficient energy saving device.

The sensor has two separate outputs, a normally opened dry relay contact and an analogue output 0–10 V that is adjustable fo 2–10 V/0–20 mA/4–20 mA. The relay output is used to turn the fan on/off depending on indoor CO₂ concentration and the analogue output is used for smooth fan speed control for a fan with EC motor or a fan with extra speed controller with 0–10 V input. In case of smooth fan speed control the fan speed varies proportionally to carbon dioxide emissions. Due to the relay and analogue outputs the sensor is compatible with any ventilation system. The self-calibration system ensures reliable sensor operation during the sensor service life.

CD-2: no integrated LED-lights and no touch button. This model is recommended for premises requiring permanent ventilation as school classes and other public premises.

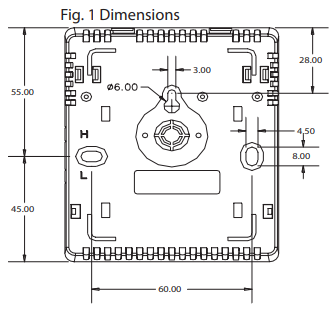

Wall surface mounting. 24 VAC low current power supply. The sensor has a socket for AT power unit offered as an accessory (AT-220/25 or AT-120/25 models).
