Speed control for EC motors BLAUBERG CDT E/0-10

Description

FEATURES

For switching fans on/off and for speed control of EC motors with 0–10 V control voltage input.

DESIGN

Casing made of high-quality plastic. Mounting junction box for wall flush mounting. IP40 ingress protection rating.

CONTROL

Switching on/off by the control knob. Speed control from minimum to maximum value. Featured with high efficiency and control accuracy.

MOUNTING

Indoor wall flush mounting in a mounting box. Suitable for installation in standard electric junction boxes.

OPTIONS

Mounting box EDR-E for wall surface mounting available upon separate order.

Characteristics

Parameter	CDT E/0-10	Measurement unit
Voltage	10-48VDC	V
Control input	0-10	V
Maximum current	0.005	A

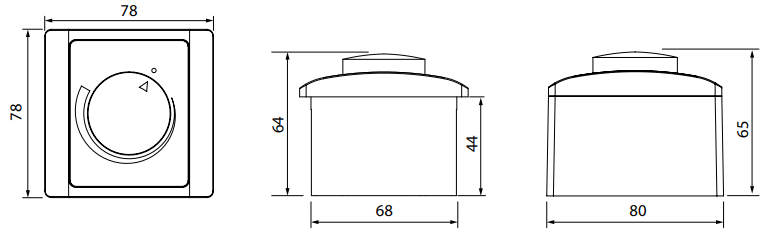

Overall dimensions AxBxC	78 x 78 x 63	mm
Maximum ambient temperature	+35	°С
Ingress protection rating	IP40	-
Weight	0.12	kg

Documents archieve

Wiring diagram

Blauberg CDT E/0-10
