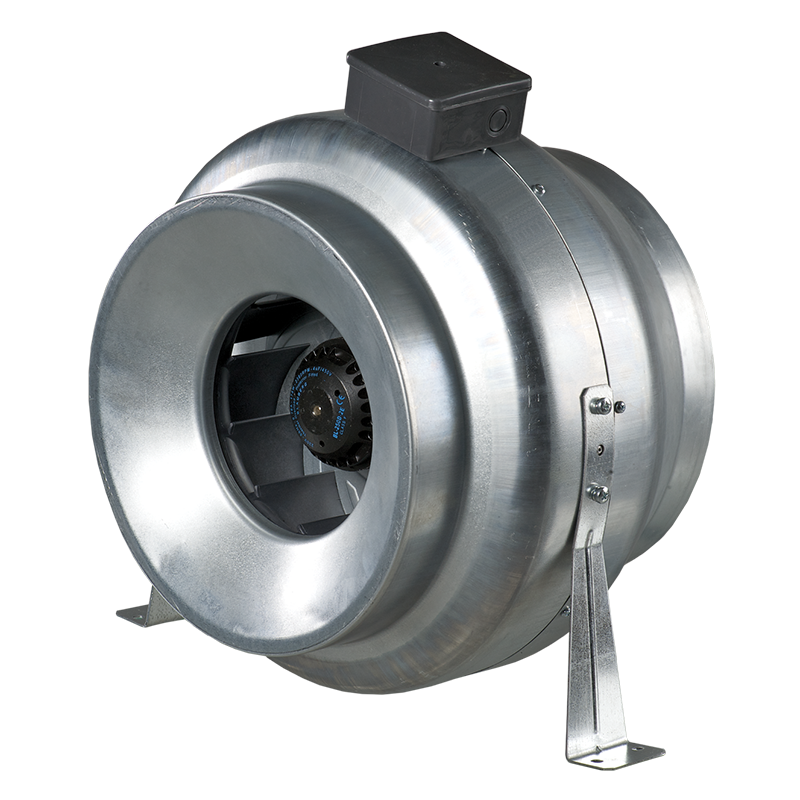

Ventilation sets and ventsBlauberg Centro-MZ 150
EAN4058448015557 - Description
- Characteristics
- Capacity diagram
- Downloads
- Dimensions
- Additional characteristics
- Designation key
- Accessories
| USE | DESIGN |
|
Supply and extract ventilation systems installed in various premises.Direct mounting inside air ductworks.Compatible with Ø100 up to 315 mm round air ducts. |
Galvanized steel casing.Aerodynamically shaped casing. |
| MOTOR | SPEED CONTROL |
|
Single-phase external rotor motor with a centrifugal impeller with backward curved blades.Equipped with ball bearings for longer service life.Integrated thermal protection with automatic restart.Dynamically balanced impeller.For ventilation of premises with high requirements to noise level low-noise modifications are available (Centro-MZ L). |
Smooth speed control with an external thyristor controller or step speed control with an external auto transformer (both available upon separate order). |
| MODIFICATIONS AND OPTIONS | |
|
max: high-powered motor.L: low-powered and low-noise motor.W1: power cable with mains plug. |
|
| MOUNTING | |
|
Any mounting position.Wall or ceiling mounting with fixing brackets supplied as a standard.Flexible air ducts are fixed on the fan spigots with clamps. |
| Parameter | Centro-MZ 150 50 Hz |
Centro-MZ 150 60 Hz |
Measurement unit |
|---|---|---|---|
| Voltage | 230 | 230 | V |
| Frequency | 50 | 60 | Hz |
| Power | 64 | 78 | W |
| Current | 0.29 | 0.34 | A |
| RPM | 2780 | 3216 | min-1 |
| Maximum air flow | 125 | 132 | l/s |
| Maximum air flow | 455 | 475 | m³/h |
| Sound pressure level at 3 m | 44 | 45 | dBА |
| Transported air temperature | -25...+50 | -25...+50 | °С |
| Motor IP rating | IP44 | IP44 | - |
| Ingress protection rating | IPX4 | IPX4 | - |
| EC motor | no | no | - |
| Casing material | galvanized steel | galvanized steel | - |
| Outdoor mounting | no | no | - |
| Sound-insulated casing | no | no | - |
| Air duct | for round air ducts | for round air ducts | - |
| Connection diameter | 150 | 150 | mm |
| Design | centrifugal | centrifugal | - |
| Type | Supply and exhaust | Supply and exhaust | - |
| SEC class | B | B | - |
| Weight | 3.5 | 3.5 | kg |
| Mounting | ceiling mounting, wall mounting | ceiling mounting, wall mounting | - |
| ErP | 2018 | 2018 | - |
- Selection method:
- Air capacity:
- Pressure:
- Air capacity: --
- Pressure: ---
| Type | Dimensions [mm] | |||||||
| ØD | ØD1 | B | B1 | L | L1 | L2 | L3 | |
| Centro-MZ 150 | 149 | 274 | 290 | 330 | 170 | 20 | 20 | 30 |
| Sound power level, A-weighted | Total | Octave frequency bands [Hz] | |||||||
| 63 | 125 | 250 | 500 | 1000 | 2000 | 4000 | 8000 | ||
| LwA to inlet [dBA] | 90 | 53 | 87 | 86 | 75 | 74 | 71 | 68 | 54 |
| LwA to outlet [dBA] | 90 | 53 | 88 | 85 | 72 | 71 | 66 | 65 | 52 |
| LwA to environment [dBA] | 66 | 28 | 49 | 58 | 60 | 60 | 60 | 50 | 37 |
| Series | Duct diameter [mm] | Motor modifications | Options |
| Centro-MZ | 100; 125; 150; 160; 200; 250; 315 | max: high-powered motor L: low-powered motor |
W1: power cable with mains plug |
