| Unit of measurement | KOMFORT Roto EC LEHP 700 S17 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50 |
| Power of electrical preheater | W | 2800 |
| Heat recovery efficiency, max | % | 85 |
| Heat exchanger type | - | Rotary |
| Heat exchanger material | - | Aluminum |
| Weight | kg | 160 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ambient air humidity max | % | 80 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |

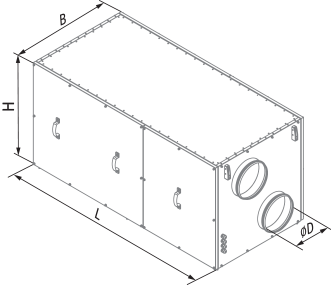

| ØD | B | H | L |
|---|---|---|---|
| 249 | 748 | 750 | 1667 |
| Name | Photo | Description |
|---|---|---|

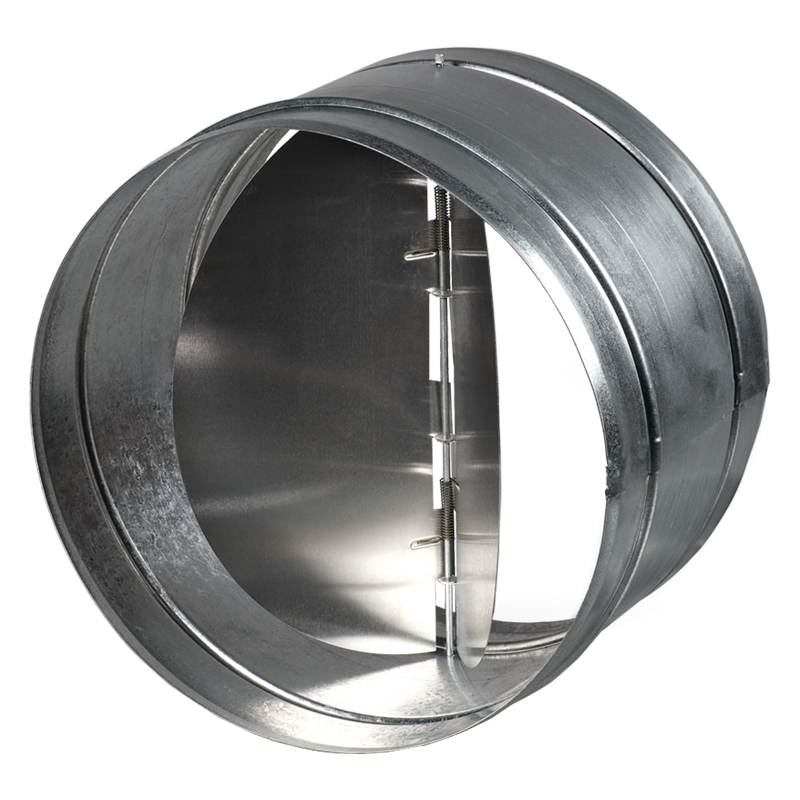

| Blauberg VRV 250 |
|
Backdraft dampers with spring for round ducts |
| Blauberg VKA 250 |
|
Air dampers for round ducts |
| Name | Photo | Description |
|---|---|---|

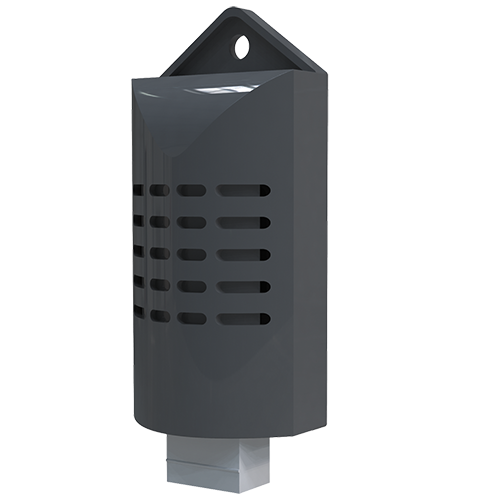

| Blauberg FS2 |
|
Humidity sensor |
| Name | Photo | Description |
|---|---|---|
| Blauberg FP 700x352x48 G4 |
|
G4 panel filter |
