Ventilation sets and ventsBlauberg KZ 315
- Description
- Characteristics
- Downloads
- Overall dimensions
- Designation key
Description
Description
| FEATURES

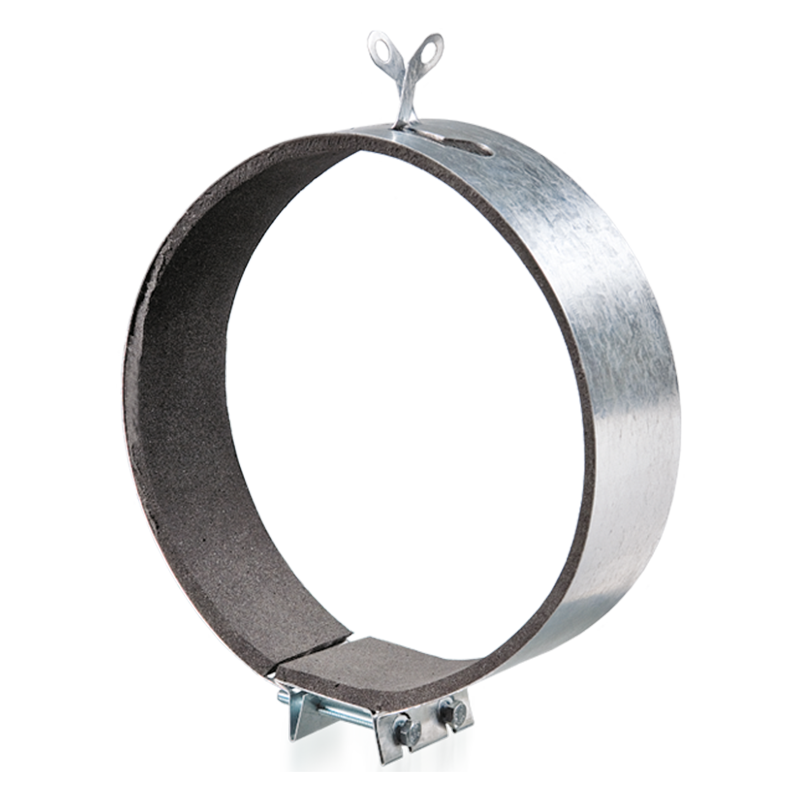

For reliable fixing of ventilation system components. Compatible with 100 up to 315 mm round ventilation system components. |
DESIGN
Made of galvanized steel band. Sealed with microporous rubber from inside for vibration absorption. MOUNTINGFixed on round ventilation system components. Round ventilation system components are fixed by a clamp with two bolts. |
Characteristics
Characteristics
| Parameter | KZ 315 | Measurement unit |
|---|---|---|
| Weight | 0.65 | kg |
| Air duct | for round air ducts | - |
| Connection diameter | 315 | mm |
| Material | galvanized steel | - |
| Device | clamp | - |
Documents archieve
Documents archieve
Select a document type

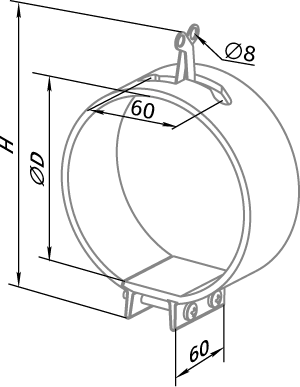

Overall dimensions
Overall dimensions
| Model | Dimensions [mm] | |
| Ø D | H | |
| KZ 315 | 315 | 380 |
Designation key
Designation key
| Series | Connected air duct diameter [mm] |
| KZ | 100; 125; 150; 160; 200; 250; 315 |
