Ventilation sets and ventsBlauberg S22
- Description
- Characteristics
- Downloads
- Overall dimensions
Description
Description
| FEATURES
The S22 / S22 Wi-Fi control panels are used for control of industrial and domestic air handling units with an S21 automation system. DESIGNCasing made of high-quality plastic. Glass sensor operating panel with touch buttons with light indication. IP40 ingress protection rating. INSTALLATION AND CONNECTIONThe S22 / S22 Wi-Fi control panels are suitable for flush and surface mounting. The delivery set includes mounting boxes for flush and surface mounting. Connection of the control panel is carried out according to the User’s manual of the unit. |
CONTROL PANEL FUNCTIONS
|
Characteristics
Characteristics
| Parameter | S22 | Measurement unit |
|---|---|---|
| Voltage | 24 | V |
| Cable type | 4 × 0.25 | mm² |
| Maximum current | 0.025 | A |
| Sensor surface material | Glass | - |
| Operating humidity range | 10 – 80 (no condensation) | % |
| Operating temperature range | +10…+45 | °С |
| Ingress protection rating | IP40 | - |
| Weight | 0.19 | kg |
| Casing material | plastic | - |
Documents archieve
Documents archieve
Select a document type

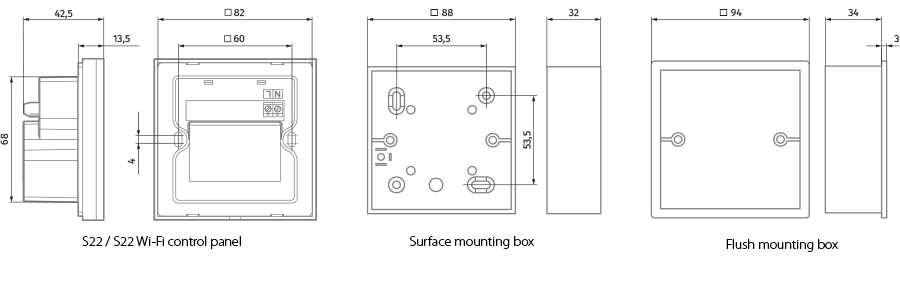

Overall dimensions
Overall dimensions
