    Blauberg VK 80

    VK 80
    • VK 80
    photo-zoom
    Print version
    Air damper for round duct.
    EAN codeEAN
    Add to project
    To comparison
    • Description
    • Characteristics
    • Downloads
    • Overall dimensions
    • Designation key
    • Diagram
    Description
    Description
    FEATURES

    For manual regulation of air flow volume in the air ducts. Compatible with Ø 80 to 450 mm round air ducts.

    MOUNTING

    Fixing to round ducts with clamps.

    		   DESIGN

    The casing and the rotary blade are made of galvanized steel. Airtight connection to air ducts due to rubber seals. Air flow manual regulation with a metal handle equipped with a lever and a locking device for fixing the position of the rotary blades.
    Characteristics
    Characteristics
    Parameter VK 80 Measurement unit
    Weight 0.57 kg
    Casing material galvanized steel -
    Air duct for round air ducts -
    Connection diameter 80 mm
    Documents archieve
    Documents archieve
    Select a document type
    • Catalogues
    • Technical documentation
    • Certificates
    Name
    Download
    Show
    VK (round) - data sheet (pdf 285.75Kb)
    VK (round) - image (png 652.71Kb)

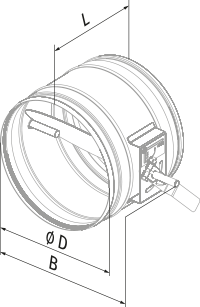

    Overall dimensions
    Overall dimensions

    Model Dimensions [mm]
    Ø D B L
    VK 80 79 140 200
    Designation key
    Designation key
    Series Connected air duct diameter [mm]
    VK 80; 100; 125; 150; 160; 200; 250; 315; 355; 400; 450
    Diagram
    Diagram
