Description

FEATURES

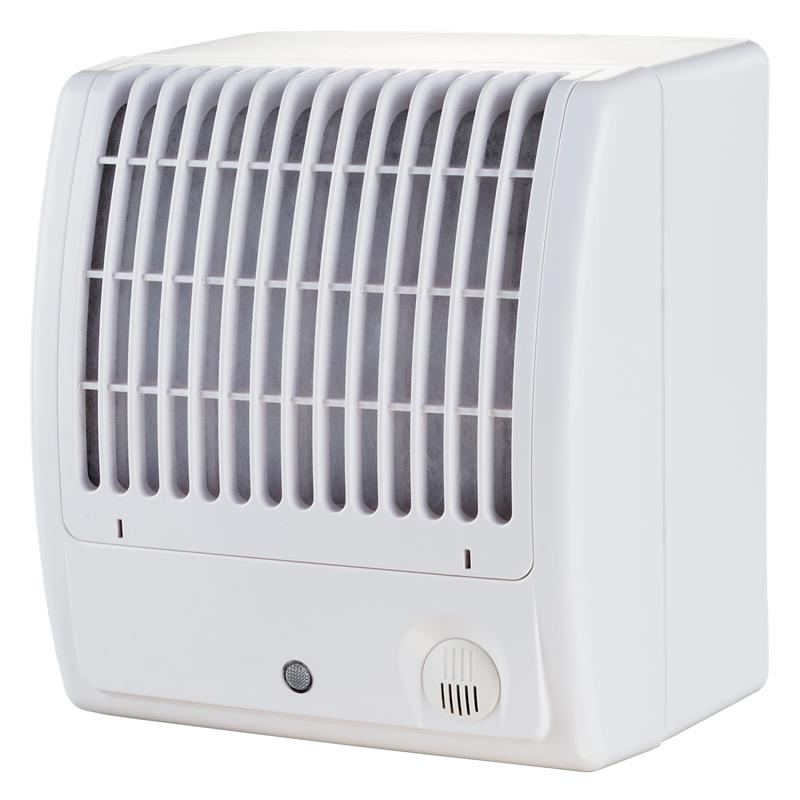

Centrifugal fans.
Wall surface or flush mounting.
Centrifugal impeller with forwards curved blades ensures high pressure.
Gravity backdraft damper for back flow prevention.
Removable grille with dust filter.
Modification with a grease filter (model Force...A) for use as a kitchen exhaust hood.
Continuous operation.5 years warranty.

OPTIONS

Model	Force (Max) 100
Option	S	T	ST	H	SH	IR
Pull-cord switch	•		•		•
Timer		•	•	•	•	•
Humidity sensor				•	•
Motion sensor						•

Timer

Turn-off delay timer adjustable from 2 to 30 min.

Humidity sensor

Humidity setpoint adjustable from 60 % up to 90 %.
Turn-off delay adjustable from 2 up to 30 min.

Motion sensor

Detection range from 1 up to 4 m.
Detection angle up to 100°.
Turn-off delay adjustable from 2 up to 30 min.

Modifications

Modification name
Force 100
Force Max 100

Modification name	No extra functions	Pull-cord switch	Timer	Humidity sensor	Motion sensor
Force 100		-	-	-	-
Force Max 100	-	-	-	-	-


+
+

Documents archieve

Designation key

Force	Max	100	T	A
Model	High-powered motor	Spigot diametr	Option	Grease filter
