Description
Description
USE

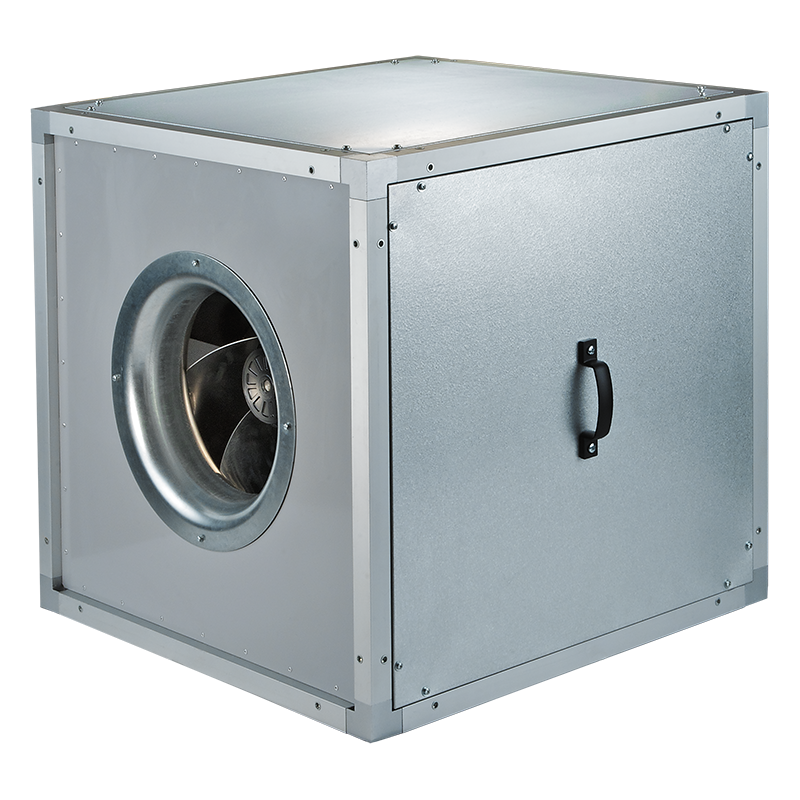

Supply and exhaust ventilation systems installed in premises with high requirements to the noise level.Various application possibilities due to a special transformable casing design.Suitable for use as separate components of air handling systems.Compatible with Ø 355 up to 710 mm round or 500x500 up to 1000x1000 mm rectangular air ducts.

DESIGN

Casing made of aluminium frame and removable aluzinc thermaland sound-insulated double-skinned sandwich panels.Casing internally filled with 20 mm non-flammable mineral wool.Position of the removable panels can be adjusted to inline air flow or 90° angle air flow. Due to corrosion-resistant casing and thermal insulation the fan is suitable for external mounting.Square to square vibration absorbing connectors (AKV series) or square to round connector-reducers (ARV seris) may be connected to the fan (available upon separate order).The round spigot of the ARV connector-reducer is rubber sealed for air tight connection.

MODIFICATIONS AND OPTIONS

max: high-powered motor.

Iso-V fan with vibration-absorbing flexible connectors AKV series Iso-V fan with connecting reducers ARV series
Iso-V fans with AH-IV outer hood Iso-V fans with RSD-IV protecting cover
MOTOR

Two-, four- or six-pole asynchronous motor with external rotor and centrifugal impeller with backward curved blades.Single-phase (E) or three-phase (D) motor modifications.Equipped with ball bearings for longer service life.Overheating protection by built-in thermal switches with leaded outside terminals for connection to external protecting controls.The thermal switch terminal leads are designed for connection to respective circuit ot the overload relay or respective terminals of the autotransformer or thyristor speed controller.The model Iso-V 355 4E incorporates thermal switches with automatic restart.Dynamically balanced turbine.

SPEED CONTROL

Smooth speed control with an external thyristor controller or step speed control with an external auto transformer (both available upon separate order).

MOUNTING

The fan is mounted with rectangular or round air ducts.Connected to air ducts with flexible vibration-absorbing connectors or connecting reducers of respective diameters.Power is supplied to the fan through an external terminal box.The fans can be installed in any mounting position with respect to air flow direction in the system. While mounting provide enough servicing space.In case of outdoor mounting the fan may be equipped with the upper protecting cover (RSD-IV series) or the outer hood (AH-IV series) to be installed at air inlet/outlet.

Modifications
Modification name
Iso-V 355 4D
Iso-V 355 4E
Iso-V 400 4D
Iso-V 400 4E
Iso-V 450 4D
Iso-V 450 4E
Iso-V 500 4D
Iso-V 500 4E
Iso-V 560 4D
Iso-V 560 6D
Iso-V 630 4D
Iso-V 630 4D max
Iso-V 630 6D
Iso-V 710 6D
+
+
+
+
+
+
+
+
+
+
+
+
+
+
Documents archieve
Documents archieve
Select a document type
  • Catalogues
  • Technical documentation
  • Certificates
Name
Iso-V - data sheet (pdf 1.82Mb)
Iso-V - user's manual (pdf 3.45Mb)
Iso-V - image (png 710.32Kb)
Designation key
Designation key
Series Spigot diameter [mm] Motor
Number of poles
Phase Motor modifications
Iso-V 355; 400; 450; 500; 560; 630; 710 4, 6 E: single-phase
D: three-phase
max: high-powered motor
Accessories
Accessories
Speed controllers
Connecting reducers
Flexible connectors Outer hoods Protecting cover




CDT E1.8  / CDTE E1.8
ARV AKV AH-IV

RSD-IV
