Description

FEATURES

On/off switch and speed selection for multi-speed fans.

MOUNTING

Designed for wall mounting in a flush mounting box.

DESIGN

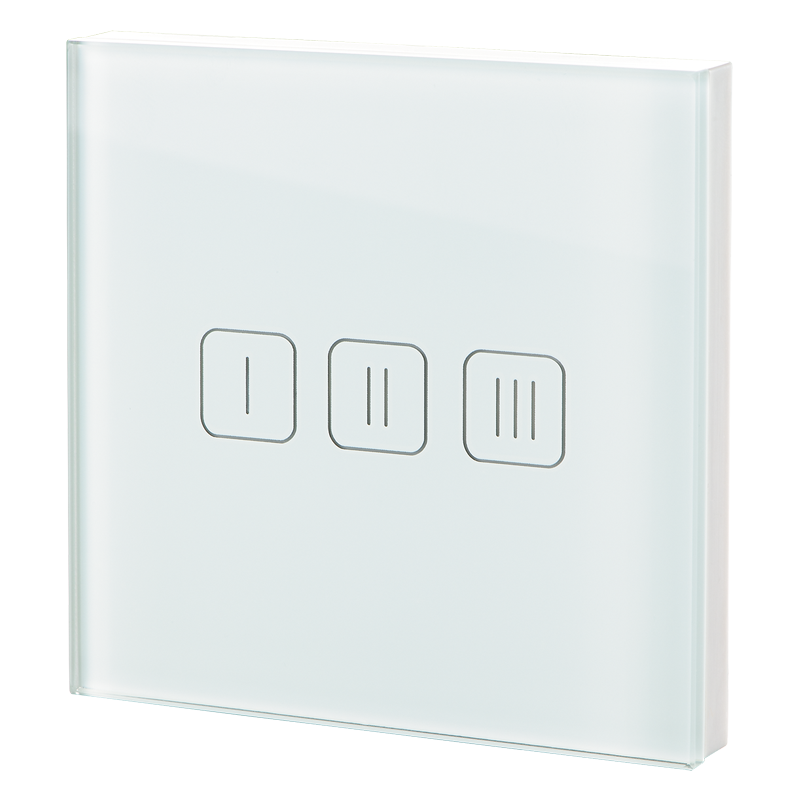

Casing made of high-quality plastic. Glass sensor operating panel with three touch buttons for speed selection with light indication. Wall flush mounting. IP30 ingress protection rating.

CONTROL

Required speed is activated by touching the respectively marked speed button. The fan is turned off by touching the current speed button.

Characteristics

Parameter	SGR-3/1	Measurement unit
Voltage	110-240	V
Frequency	50/60	Hz
Maximum load current	1	A
Number of speeds	3	-
Cable cross section	from 0.35 up to 1	mm²
Operating temperature range	-10...+45	°С
Operating humidity range	from 5 up to 80 (no condensation)	%
Service life	100 000 switching operations	-
Ingress protection rating	IP30	-
Weight	0.138	kg

Documents archieve

Wiring diagram

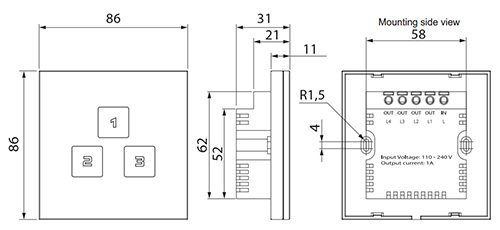

Overall dimensions

Blauberg SGR-3/1
