Description
Characteristics
Downloads
Overall dimensions
Designation key
Diagram

Description

FEATURES

For automatic shutoff of air ducts installed in ventilation systems of various premises. Compatible with Ø 80 to 450 mm round air ducts.

DESIGN

The casing and the rotary blade are made of galvanized steel. Airtight connection to air ducts due to rubber seals. A shaft and a mounting pad are provided for BELIMO electric actuator. Compatible actuators are shown in the table below.

MOUNTING

Fixing to round ducts with clamps. While mounting provide enough space for accessing the electric actuator.

COMPATIBILITY TABLE

Model	Actuator type
Model	Electric actuator, 230 V	Electric actuator with spring return, 230 V	Electric actuator, 24 V	Electric actuator with spring return, 24 V
VKA 125	CM230 / LM230A	TF230	CM24 / LM24A	TF24

Characteristics

Parameter	VKА 125	Measurement unit
Weight	0.86	kg
Casing material	galvanized steel	-
Air duct	for round air ducts	-
Connection diameter	125	mm

Documents archieve

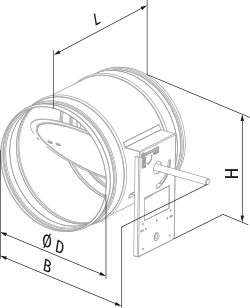

Overall dimensions

Model	Dimensions [mm]
Model	Ø D	B	L	H
VKA 125	124	245	200	195

Designation key

Series	Connected air duct diameter [mm]
VKA	80; 100; 125; 150; 160; 200; 250; 315; 355; 400; 450

Diagram

Blauberg VKA 125
