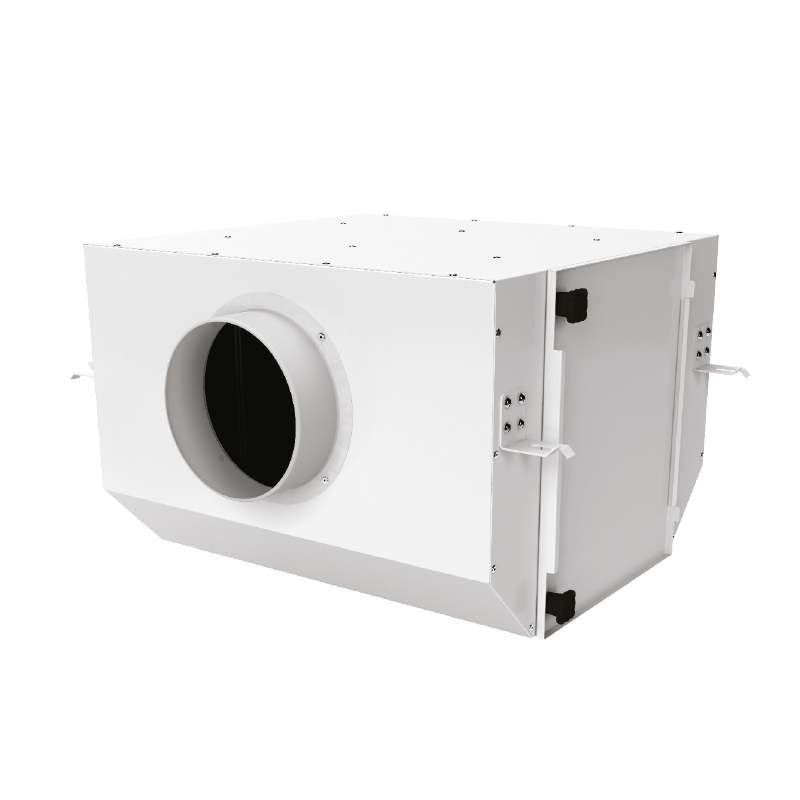

Blauberg Clean Box

For purification of supply air in ventilation and air conditioning systems installed in various premises.Suitable for limited mounting space.Compatible with Ø 100 up to 200 mm round air ducts.

The Clean Box ES is equipped with an electrostatic filter that enables purification of air from fine dust and soot, spray, smoke and other particles with the size of 0.01 microns and less.
Max. filter cleaning efficiency 98 %. The electrostatic filters rely on gravity of oppositely charged objects. The polluted air stream flows through the spray charging unit for the particles ionization. Ionized particles are moved by the airstream and accumulated on the collecting plates which are oppositely charged.

The filter cleaning interval depends on the inlet air pollution density and may vary from 7 up to 21 days. The filter cleaning interval is determined by the visual inspection of the filters.Vacuum cleaning is allowed.

MOUNTING

Due to compact design is the ideal solution for mounting in limited spaces, including the space behind false ceiling. Any mounting position. Wall or ceiling mounting with fixing brackets supplied as a standard.

The casing is made of polymer-coated steel. Easy access for filter maintenance.

Built-in filters provide efficient air filtration. Up to three filters can be installed into the casing. G4 filter provides primary filtration. At the second stage, the secondary filter F8 or HEPA filter H13 can be installed. F8 filter arrests up to 98 % of PM2.5 dust particles. H13 filter arrest up to 99 % of PM2.5 dust particles, pollen and bacteria. For additional elimination of odors and gases Quick access to replaceable filters through service panel.
