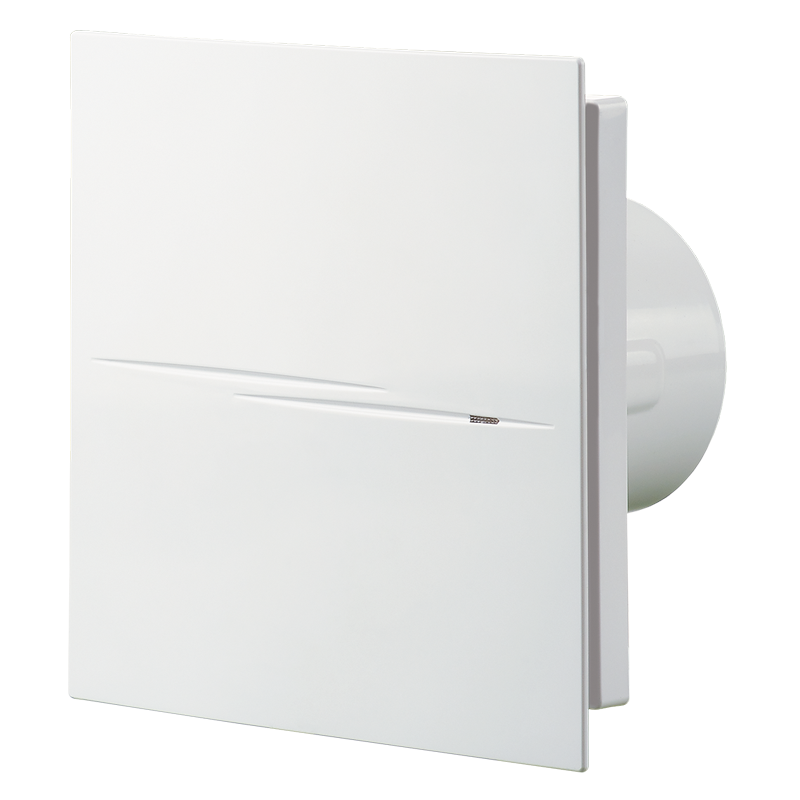

Blauberg Sileo Design

Sileo Design
Sileo Design
zoom

Fan with air capacity up to 90 m³/h.
Model features
3D-view
Gallery
  • Description
  • Modifications
  • Capacity diagram
  • Downloads
  • Designation key
Description
Description

FEATURES





Specially designed mixed-flow impeller profile ensures high air flow and low noise level. Casing and impeller made of quality durable UV-resistant plastic. Backdraft damper for back flow prevention. The high ingress protection rating of IP45 makes the fan the ideal solution for the ventilation of bathrooms and shower rooms. Low energy demand from 7.5W due to a new high-efficient motor. The motor is mounted on special anti-vibration dampers. The exhaust pipe incorporates a specially designed air rectifier to reduce о the air turbulence, increase pressure and lower the noise level.

OPTIONS

MOUNTING

Installation directly inside a ventilation shaft.Flexible air ducts may be used in case of remote location of the ventilation shaft. Connection of the air duct to the exhaust flange with a clamp.Wall mounting with screws. Suitable for ceiling mounting.

















Model

Sileo Design 100
Option S T TR ST H SH
Pull-cord switch
Turn-on delay timer
Turn-off delay timer
Humidity sensor













Turn-on delay timer

  • Turn-on delay time adjustable from 0 to 2 min.

Turn-off delay timer

  • Adjustable delay from 2 to 30 min.

Humidity sensor

  • Humidity setpoint adjustable from 60 % up to 90 %.
Modifications
Modification name
Sileo Design 100
Modification name No extra functions Turn-on delay timer Humidity sensor Turn-off delay timer Pull-cord switch
Sileo Design 100 - - - -
+
Capacity diagram
Capacity diagram
  • Selection method:
  • Air capacity:
  • Pressure:
Operating point
  • Air capacity: --
  • Pressure: ---
Documents archieve
Documents archieve
Select a document type
  • Catalogues
  • Technical documentation
  • Certificates
Name
Sileo Design - data sheet (pdf 430.68Kb)
Sileo Design - operation manual (pdf 3.91Mb)
Sileo Design - image (png 412.81Kb)
Designation key
Designation key
Sileo Design 100 H
Model Spigot diameter Option
