Blauberg Cabrio Base V2 100

Print version

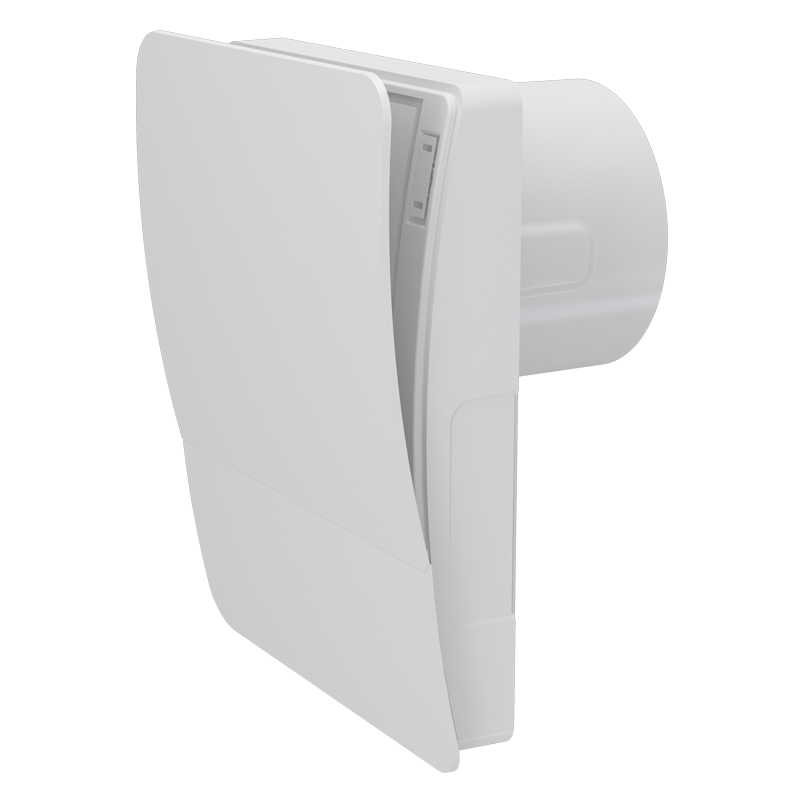

Innovative two-speed domestic extract fan with automatic shutter, low-noise operation and low energy consumption. Maximum air flow: up to 90 m³/h.

EAN4058448037955

Add to project

To comparison

Description
Characteristics
Capacity diagram
Downloads
Modifications
Designation key
Dimensions

Description

FEATURES

Low energy demand from 6 W due to a new energy-efficient two-speed motor. The casing and the impeller are made of high-quality, durable, UV resistant ABS plastic. Specially designed profile of the mixed-flow impeller provides high air flow and low-noise operation. The motor is mounted on special anti-vibration dampers for absorption of vibration. The motor is equipped with overheating protection. Maintenance-free bearings contain enough lubricant for 40 000 hrs of non-stop operation of the motor. The fan is equipped with a special mechanism for smooth opening and closing of the front panel. The fan extract spigot incorporates specially designed air rectifiers to reduce air turbulence and noise level. Due to the high ingress protection rating IP44 the fan is the ideal bathroom ventilation solution. The electronic components are protected with tight covers. The ventilation unit is easily removed from the casing for cleaning. The shortened spigot enables to install the fan in a the ventilation shaft or to connect to a Ø 100 mm air duct.

CONTROL

Manual control with a room light switch. The switch is not included into the delivery set. Automatic control is performed with the humidity sensor or/and timer. Selection of the operation mode is performed via changeover of the switch as follows:

Operation mode 1: the fan is turned off by default. The fan switches to the low speed when the switch is closed or to the high speed when the humidity sensor is activated;
Operation mode 2: the fan is turned off by default. The fan switches to the high speed when the switch is closed or the humidity sensor is activated.

APPLICATION EXAMPLE

OPTIONS

Model	Cabrio Base V2 100
Option	T	H
Interval timer	•
Turn-on delay timer	•	•
Turn-off delay timer	•	•
Humidity sensor		•

Interval timer

If the interval timer is enabled, the fan will turn on automatically each 6, 12 of 24 hrs, and it will operate from 2 to 30 min, depending of turn-off delay timer setting.

Turn-on delay timer

Fixed turn-on delay time of 60 sec.

Turn-off delay timer

Turn-off delay timer adjustable from 2 to 30 min.

Humidity sensor

Humidity setpoint adjustable from 60 % up to 90 %.

Characteristics

Parameter	Cabrio Base V2 100 min	Cabrio Base V2 100 max	Cabrio Base V2 100 T min	Cabrio Base V2 100 T max	Cabrio Base V2 100 H min	Cabrio Base V2 100 H max	Measurement unit
Voltage	220-240	220-240	220-240	220-240	220-240	220-240	V
Frequency	50	50	50	50	50	50	Hz
Power	6	8.5	6	8.5	6	8.5	W
Current	0.039	0.063	0.039	0.063	0.039	0.063	A
RPM	1850	2400	1850	2400	1850	2400	min^-1
Maximum air flow	17	25	17	25	17	25	l/s
Maximum air flow	60	90	60	90	60	90	m³/h
Sound pressure level	22*	25*	22*	25*	22*	25*	dBА
SFP	0.36	0.34	0.36	0.34	0.36	0.34	W/l/s
Weight	0.55	0.55	0.55	0.55	0.55	0.55	kg
Connection diameter	100	100	100	100	100	100	mm
Design	axial	axial	axial	axial	axial	axial	-
Type	Exhaust	Exhaust	Exhaust	Exhaust	Exhaust	Exhaust	-
Mounting	wall mounting	wall mounting	wall mounting	wall mounting	wall mounting	wall mounting	-
*	Sound pressure level measured in free space at a distance of 3 meters from the fan	Sound pressure level measured in free space at a distance of 3 meters from the fan	Sound pressure level measured in free space at a distance of 3 meters from the fan	Sound pressure level measured in free space at a distance of 3 meters from the fan	Sound pressure level measured in free space at a distance of 3 meters from the fan	Sound pressure level measured in free space at a distance of 3 meters from the fan	-
