Login
I forgot my password
Privacy policy
Authorization
Not registered yet? Take advantages of registration:
Products saving in a binding to the projects
Online consultation from experts
Signup

Privacy policy
Menu
Signup & Login
Language: EN

    Blauberg Box-R

    Box-R
    Box-R
    zoom
    Print version

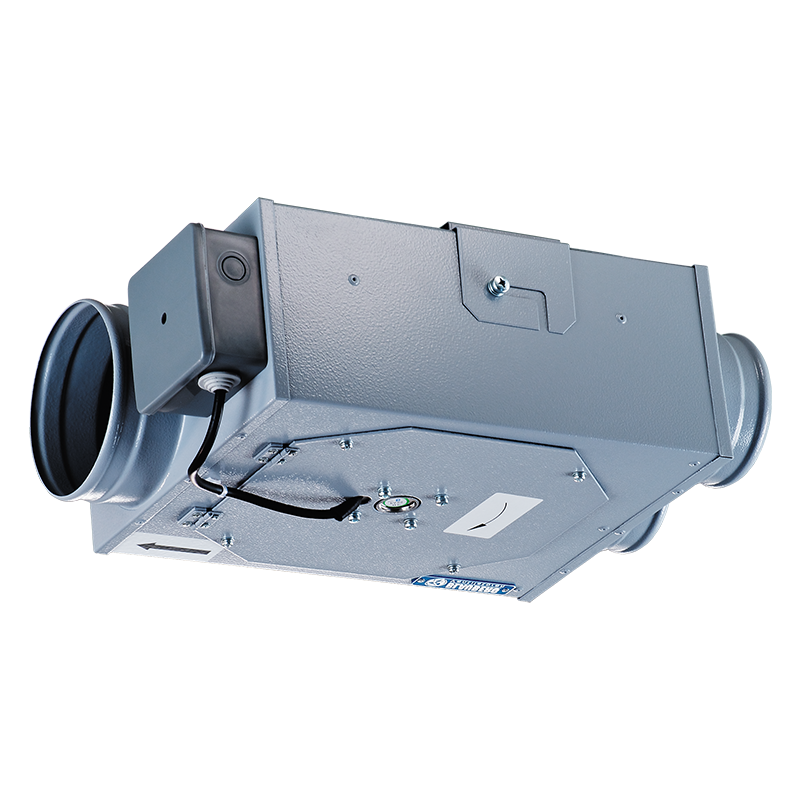

    Inline centrifugal fans. Maximum air flow up to 783 m³/h.
    Model features
    Series of products
    Box-R 80 V3
    Box-R 80 V3
    Box-R 80/80x2 V3
    Box-R 80/80x2 V3
    Box-R 80/80x4 V3
    Box-R 80/80x4 V3
    Box-R 80/80x5 V3
    Box-R 80/80x5 V3
    Box-R 80/80x6 V3
    Box-R 80/80x6 V3
    Box-R 100 V3
    Box-R 100 V3
    Box-R 100/80x2 V3
    Box-R 100/80x2 V3
    Box-R 100/80x4 V3
    Box-R 100/80x4 V3
    Box-R 100/80x5 V3
    Box-R 100/80x5 V3
    Box-R 100/80x6 V3
    Box-R 100/80x6 V3
    Box-R 100/100x2 V3
    Box-R 100/100x2 V3
    Box-R 100/100x4 V3
    Box-R 100/100x4 V3
    Box-R 100/100x5 V3
    Box-R 100/100x5 V3
    Box-R 100/100x6 V3
    Box-R 100/100x6 V3
    Box-R 125
    Box-R 125
    Box-R 125 max
    Box-R 125 max
    Box-R 125 V2
    Box-R 125 V2
    Box-R 150
    Box-R 150
    Box-R 150 V2
    Box-R 150 V2
    Box-R 200
    Box-R 200
    Box-R 200 V2
    Box-R 200 V2
    Box-R 80 V3
    Box-R 80 V3
    Box-R 80/80x2 V3
    Box-R 80/80x2 V3
    Box-R 80/80x4 V3
    Box-R 80/80x4 V3
    Box-R 80/80x5 V3
    Box-R 80/80x5 V3
    Box-R 80/80x6 V3
    Box-R 80/80x6 V3
    Box-R 100 V3
    Box-R 100 V3
    Box-R 100/80x2 V3
    Box-R 100/80x2 V3
    Box-R 100/80x4 V3
    Box-R 100/80x4 V3
    Box-R 100/80x5 V3
    Box-R 100/80x5 V3
    Box-R 100/80x6 V3
    Box-R 100/80x6 V3
    Box-R 100/100x2 V3
    Box-R 100/100x2 V3
    Box-R 100/100x4 V3
    Box-R 100/100x4 V3
    Box-R 100/100x5 V3
    Box-R 100/100x5 V3
    Box-R 100/100x6 V3
    Box-R 100/100x6 V3
    Box-R 125
    Box-R 125
    Box-R 125 max
    Box-R 125 max
    Box-R 125 V2
    Box-R 125 V2
    Box-R 150
    Box-R 150
    Box-R 150 V2
    Box-R 150 V2
    Box-R 200
    Box-R 200
    Box-R 200 V2
    Box-R 200 V2
    • Description
    • Modifications
    • Capacity diagram
    • Downloads
    • Designation key
    • Accessories
    Description
    Description
    USE

    Supply and extract ventilation systems installed in small premises.High-pressure inline fan for ventilation systems installed in multi-level buildings and premises.Mounting in limited space.For multiport extract ventilation from several premises.Compatible with ∅ 80 up to 200 mm round air ducts.
    DESIGN

    Steel supercompact casing covered with special polymer coating.Minimum casing height is only 90 mm.Aerodynamically shaped casing.External terminal block for power supply.Swivel cover provides easy access to the motor.Various casing modifications include from 1 to 6 inlet spigots.The connection spigots are equipped with rubber seals.
    SPEED CONTROL

    In single-speed models stepped speed control is provided by means of an external thyristor or autotransformer controller (sold separately).The V2 models are regulated by an external CDP-2/5 or CDP-2/10 switch (sold separately).The V3 models are regulated by an external CDP-3/5 switch (sold separately).
    MOTOR

    Single-phase electric motor (1, 2, or 3 speeds) with an external rotor and a centrifugal impeller with forward-curved blades made from galvanised steel.Equipped with ball bearings for longer service life.Integrated thermal protection with automatic restart.Dynamically balanced impeller.
    MOUNTING

    Due to compact design the fan is the ideal solution for mounting in limited spaces, including the space behind false ceiling.Any mounting position.Wall or ceiling mounting with a fixing bracket supplied as a standard.Flexible air ducts are fixed on the fan spigots with clamps.
    MODIFICATIONS
    1 inlet pipe
    Ø 80 or 100 mm    		 2 inlet pipes
    Ø 80 or 100 mm    		 4 inlet pipes
    Ø 80 or 100 mm    		 5 inlet pipes
    Ø 80 or 100 mm    		 6 inlet pipes
    Ø 80 or 100 mm
    Modifications
    Modification name
    Box-R 100 V3
    Box-R 100/100x2 V3
    Box-R 100/100x4 V3
    Box-R 100/100x5 V3
    Box-R 100/100x6 V3
    Box-R 100/80x2 V3
    Box-R 100/80x4 V3
    Box-R 100/80x5 V3
    Box-R 100/80x6 V3
    Box-R 125
    Box-R 125 max
    Box-R 125 V2
    Box-R 150
    Box-R 150 V2
    Box-R 200
    Box-R 200 V2
    Box-R 80 V3
    Box-R 80/80x2 V3
    Box-R 80/80x5 V3
    Box-R 80/80x6 V3
    Box-R-80/80x4 V3
    Modification name
    Box-R 100 V3
    Box-R 100/100x2 V3
    Box-R 100/100x4 V3
    Box-R 100/100x5 V3
    Box-R 100/100x6 V3
    Box-R 100/80x2 V3
    Box-R 100/80x4 V3
    Box-R 100/80x5 V3
    Box-R 100/80x6 V3
    Box-R 125
    Box-R 125 max
    Box-R 125 V2
    Box-R 150
    Box-R 150 V2
    Box-R 200
    Box-R 200 V2
    Box-R 80 V3
    Box-R 80/80x2 V3
    Box-R 80/80x5 V3
    Box-R 80/80x6 V3
    Box-R-80/80x4 V3
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    +
    Capacity diagram
    Capacity diagram
    • Selection method:
    • Air capacity:
    • Pressure:
    Operating point
    • Air capacity: --
    • Pressure: ---
    Documents archieve
    Documents archieve
    Select a document type
    • Catalogues
    • Technical documentation
    • Certificates
    Name
    Download
    Show
    Box-R - data sheet (pdf 1.55Mb)
    Box/Box-R - user's manual (pdf 1.73Mb)
    Box-R - image (png 462.62Kb)
    Designation key
    Designation key
    Series Outlet spigot diameter [mm] /  Inlet spigot diameter [mm] X  Number of inlet spigots Motor modifications
    Box-R 80; 100; 125; 150; 200 80; 100; 125; 150; 200 _: (1 by default); 2; 4; 5; 6 _: single-speed motor
    V2: two-speed motor
    V3: three-speed motor
    max: high-powered motor
    Accessories
    Accessories
    Backdraft air dampers
    Air dampers
    		 Clamps Temperature controllers
    Speed
    controllers
    		 Timers/Sensors


    VRV

    		 VK / VKA  K MLCD E2  CDP TE(TI) / HSE(HSI) / LSE(LSI) / IRSE(IRSI)
    Accessories
    This site use cookies. By accepting cookies you can optimize your browsing experience. Please read our Privacy Policy for more information.
    Privacy policy
    Close
