Ventilation sets and ventsBlauberg Centro
- Description
- Modifications
- Capacity diagram
- Downloads
- Designation key
- Accessories
| USE |  |
|
Supply and extract ventilation systems installed in various premises. Mounting in kitchens, bathrooms and other humid premises. Compatible with Ø 100 up to 315 mm round air ducts. |
|
| DESIGN | |
|

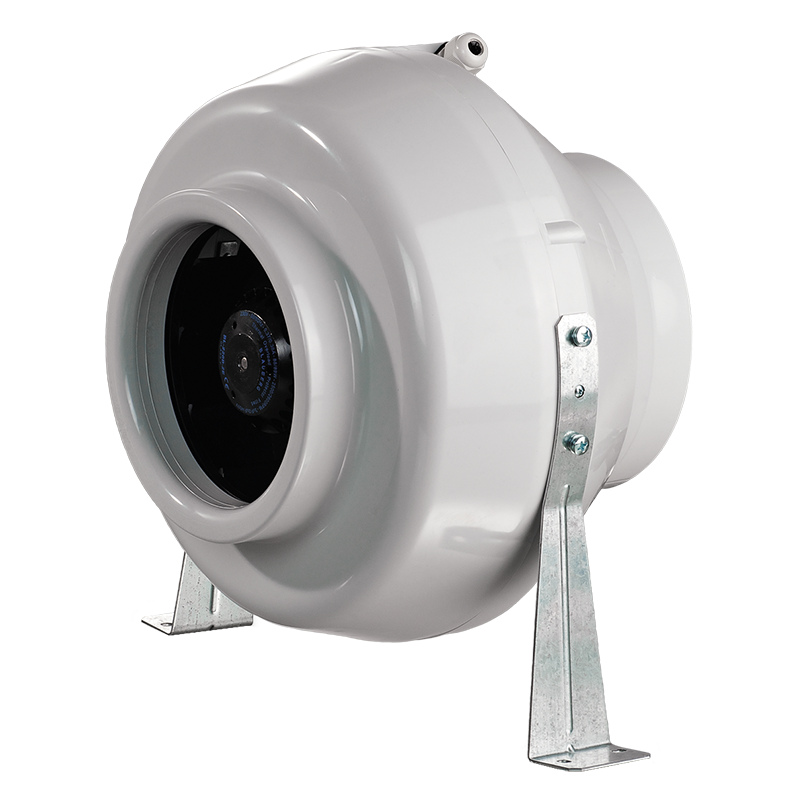

High-quality durable plastic casing. Aerodynamically shaped casing. Airtight mounting box. Centro 150 is compatible with 150 and 160 mm air ducts. |
|
| MOTOR | MODIFICATIONS AND OPTIONS |
|
Single-phase external rotor motor with a centrifugal impeller with backward curved blades. Equipped with ball bearings for longer service life. Integrated thermal protection with automatic restart. Dynamically balanced impeller. Some standard sizes have high-powered motors (Centro max). For ventilation of premises with high requirements to noise level low-noise modifications are available (Centro L). Centro V2 is equipped with the two-speed asynchronous motor with external rotor and centrifugal dynamically balanced impeller with backward curved blades. |
max: high-powered motor. L: low-powered and low-noise motor. FR1: smooth speed controller adjustable from 0 to 100 % and power cable with mains plug.
G1 speed controller, temperature controller with external temperature sensor (cable length 4 m), power cable with mains plug.
GI1: speed controller, temperature controller with integrated temperature sensor and power cable with mains plug.The G and GI modifications enable automatic speed control depending on indoor temperature. The optimal ventilation solution for premises requiring permanent temperature control as greenhouses, orangeries, etc.V: built-in speed switch (for two-speed models). W1 power cable with mains plug. |
| SPEED CONTROL | |
|
Smooth speed control with a built-in electronic speed controller (option FR1). Smooth speed control with an external thyristor controller or step speed control with an external auto transformer (both available upon separate order). Centro V2 series: two-speed control with the external CDP-2/5 or CDP-2/10 speed switch (available upon separate order). |
|
| MOUNTING | |
|
Due to compact design the fan is the ideal solution for mounting in limited spaces. Any mounting position. Wall or ceiling mounting with fixing brackets supplied as a standard or with a wire frame Halter Centro (available upon separate order). Flexible air ducts are fixed on the fan spigots with clamps.
|
| Modification name | |
|---|---|
| Centro 100 | |
| Centro 100 L | |
| Centro 100 V2 | |
| Centro 125 | |
| Centro 125 L | |
| Centro 125 V2 | |
| Centro 150 | |
| Centro 150 V2 | |
| Centro 200 | |
| Centro 200 max | |
| Centro 200 V2 | |
| Centro 250 | |
| Centro 250 L | |
| Centro 250 V2 | |
| Centro 315 | |
| Centro 315 max | |
| Centro 315 V2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- Selection method:
- Air capacity:
- Pressure:
- Air capacity: --
- Pressure: ---
| Series | Duct diameter [mm] | Motor modifications | Options |
|
Centro |
100; 125; 150*; 200; 250; 315 |
max: high-powered motor
L: low-powered motor
V2: two-speed motor
|
FR1: smooth speed controller adjustable from 0 to 100 % and power cable with mains plug
G1: speed controller, temperature controller with external temperature sensor, power cable with mains plug
GI1: speed controller, temperature controller with integrated temperature sensor and power cable mains plug
V: built-in speed switch (for two-speed models)
W1: power cable with mains plug
|
* Centro 150 (V2) model is compatible with the air ducts both Ø 150 and 160 mm
