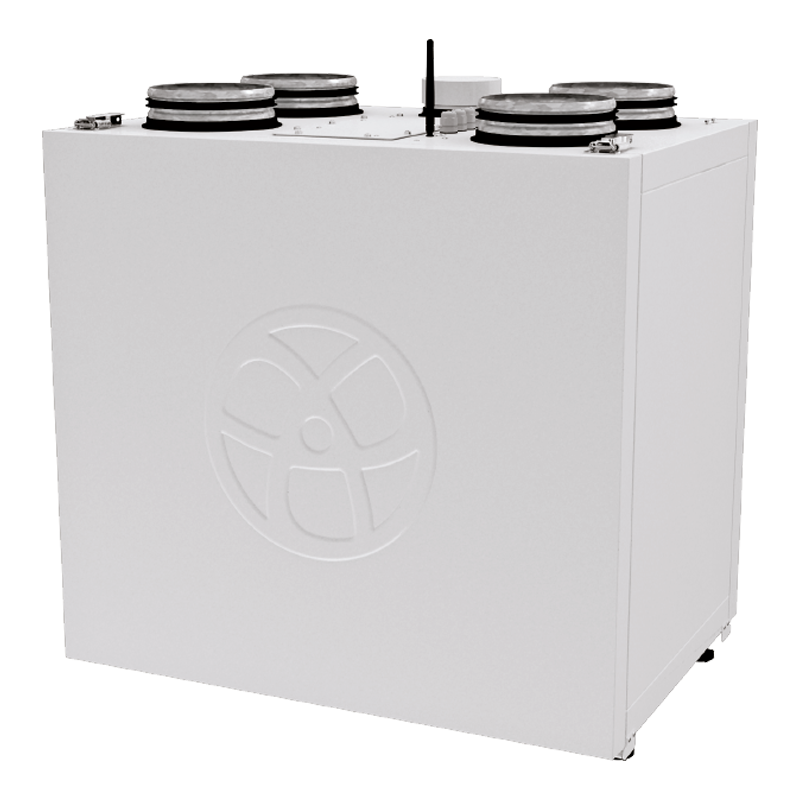

Blauberg KOMFORT Roto EC S(E)

Air handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings. Heat recovery is provided by the rotary heat exchanger and minimizes ventilation heat losses. Controllable air exchange for creating the best suitable indoor microclimate. Compatible with round Ø 125, 160 and 200 mm air ducts. Additional spigot for kitchen hood air duct connection.

The fan casing is made of galvanized steel, internally filled with mineral wool layer for heat and sound insulation. The spigots are located at the top of the unit and are rubber sealed for airtight connection to the air ducts. The insulation of KOMFORT Roto EC S2(E) 200 is 20 mm, for KOMFORT Roto EC S(E) 280, 400 and 600 is 40 mm. KOMFORT Roto EC S(2): model without electric heater. KOMFORT Roto EC S(2)E: model with electric heater.

All units are equipped with a 5th spigot for connection to the kitchen hood air duct. The distinctive feature of KOMFORT Roto EC S2(E) 200 is the possibility to connect the kitchen hood DAH 251-13 (ordered separately) directly to the unit.

High-efficient external rotor EC motors and centrifugal impellers with forward curved blades are used for air supply and exhaust. EC motors have the best power consumption to air flow ratio and meet the latest demands concerning energy saving and high-efficient ventilation. EC motors are featured with high performance, low noise level and totally controllable speed range. Dynamically balanced impellers.

Two built-in G4 and F7 filters provide efficient supply air filtration. The unit KOMFORT ROTO EC S2(E) 280 features F7 filter.The G4 filter is used for extract air filtration.

The unit has a high-efficient rotary heat exchanger.The rotary regenerator is a short, rotating cylinder, filled with corrugated aluminium sheet layers. The air streams flow through them.The band layers of the heat regenerator first come in contact with the supply and then with extract air flows.Therefore the band is alternatively warmed up and cooled down and the extract air heat and humidity are transferred to the cold intake air. This way heat recovery reduces heat losses in the cold season and reduces operation load for air conditioner in the warm season.The advantages of the rotary regenerator as compared to the plate heat exchangers include no condensate generation, maintaining comfort air humidity and high freeze resistance.

The KOMFORT Roto EC S(2)E units are equipped with the electric heater. If the necessary temperature level of the supply air cannot be achieved through heat recovery, the heater turns on automatically and heats the air supplied to the premise. The heaters incorporate protective measures securing the safe unit operation.

The units can be fixed to the wall or mounted on the floor.During mounting stage the front and the back panels can be reversed providing either left-handed or right-handed unit mounting.

KOMFORT Roto EC S... S21 units are equipped with an integrated automation system. The remote control panel is not included in the delivery set (purchased separately). The S21 controller allows integrating the unit into the Smart Home system or BMS (Building Management System). The unit can be controlled via the Blauberg AHU mobile application via Wi-Fi.

Functions	Description
Control via Wi-Fi using a mobile application	+
Control via a wired remote control panel	S22 control panel (option)
Control via a wireless remote control panel	S22 Wi-Fi control panel (option)
Control via a wired remote LCD control panel	S25 control panel (option)
BMS (Building Management System)	RS-485
	Wi-Fi
	Ethernet
	MODBUS (RTU, TCP)
Blauberg Cloud Server service	+
Speed selection	+
Filter replacement indication	by filter timer
Alarm indication	full alarm description in the mobile application
Week-scheduled operation	+
Timer	+
Boost mode	+
Fireplace mode	+
Cooler connection	option
Kitchen hood connection	option
Minimum supply air temperature control	+
Humidity control	option
CO2 control	option
VOC control	option
PM2.5 control	option
Fire alarm sensor connection	option

Option: function is available when purchasing the appropriate accessory (see the "Accessories" tab).
